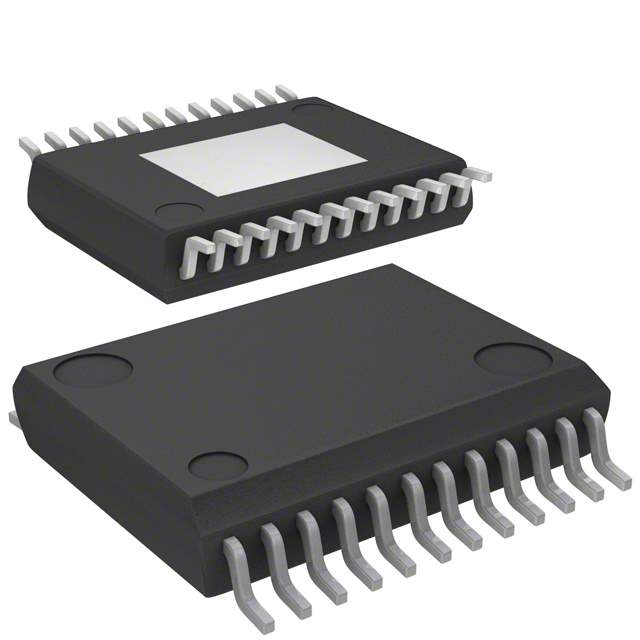

ON Semiconductor NCV7726DQAR2G Product Overview

The NCV7726DQAR2G is a highly integrated and robust automotive-grade product from ON Semiconductor, designed to deliver exceptional performance in a wide range of automotive applications. This octal configurable low/high-side driver is part of ON Semiconductor's extensive portfolio of automotive solutions, offering reliability and flexibility for designers working on advanced vehicle systems.

Key Features

• Multiple Channel Configuration: The NCV7726DQAR2G features eight output drivers which can be configured as either high-side, low-side, or H-bridge drivers, providing a versatile platform for controlling a variety of loads.
• High Voltage Operation: With an operating voltage range from 5.5 V to 28 V, this device can handle a broad spectrum of automotive voltages, making it suitable for 12 V, 24 V, and hybrid systems.
• Current Sense: Each channel incorporates current sensing capabilities, allowing for real-time monitoring and diagnostics of the load, enhancing system reliability and performance.
• Thermal Protection: The product is equipped with overtemperature shutdown protection, ensuring the device and the system it controls are safeguarded against thermal damage.
• High ESD Protection: With built-in Electrostatic Discharge (ESD) protection, the NCV7726DQAR2G is resilient to the harsh electrical environments found in automotive applications.

Applications

The versatility of the NCV7726DQAR2G makes it an ideal choice for various automotive applications, including:

• Body Control Modules
• LED Lighting Systems
• Engine Control Units
• Motor Control for Pumps, Fans, and Wipers

Quality and Reliability

As an automotive-grade product, the NCV7726DQAR2G meets stringent quality standards, including AEC-Q100 qualification. It is designed to withstand the demanding conditions of the automotive environment, ensuring long-term reliability and performance.

Environmental Compliance

ON Semiconductor is committed to environmental stewardship, and the NCV7726DQAR2G is no exception. It is lead-free and RoHS compliant, minimizing the environmental impact and meeting global regulatory requirements for electronic components.

In summary, the NCV7726DQAR2G from ON Semiconductor is a versatile and durable solution for automotive applications requiring configurable low/high-side driver capabilities. With its robust feature set and adherence to automotive quality standards, this product is an excellent choice for designers seeking to enhance the performance and reliability of their automotive systems.
