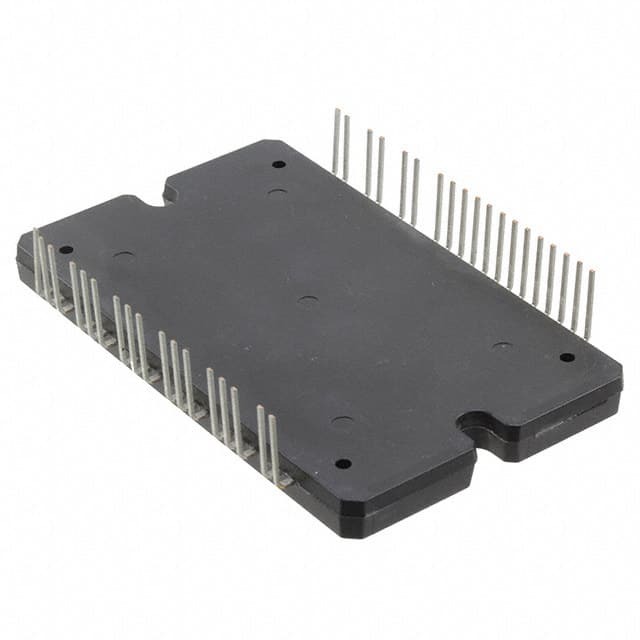

ON Semiconductor's STK5F1U3C3D-E Intelligent Power Module

The STK5F1U3C3D-E is a sophisticated Intelligent Power Module (IPM) engineered by ON Semiconductor, a leading provider of semiconductor-based solutions. This innovative module is designed to cater to the demanding requirements of high-performance power conversion applications. It is an ideal choice for use in motor drives, power inverters, and other applications that require efficient and reliable power management.

Key Features

• Integrated Design: The STK5F1U3C3D-E combines advanced IGBT (Insulated Gate Bipolar Transistor) technology with high-voltage integrated circuits to provide a compact, high-performance solution.
• High Power Efficiency: With its optimized IGBT design, this IPM offers low on-state voltage drop and minimal switching losses, thereby enhancing power efficiency and thermal performance.
• Built-in Protection: It includes several protection features such as over-current, short-circuit, under-voltage lockout, and over-temperature protection, ensuring safe operation and longevity of the module.
• Easy-to-Use Interface: The module provides a user-friendly interface that simplifies the control and monitoring of the power stage, making it accessible for a wide range of applications.

Electrical Specifications

The STK5F1U3C3D-E operates with a maximum rating of 600V and a current rating of 15A. The IPM's high voltage and current capabilities enable it to drive motors and handle power conversion for mid to high power ranges efficiently.

Applications

Thanks to its versatile features and robust design, the STK5F1U3C3D-E is suitable for a variety of applications, including:

• AC Motor Drives
• Home Appliances
• Industrial Automation
• Renewable Energy Systems
• UPS Systems

ON Semiconductor's commitment to quality and performance is evident in the STK5F1U3C3D-E, making it a reliable choice for engineers and designers looking for a power module that delivers both efficiency and durability. The integration of advanced semiconductor technologies into one package provides a streamlined solution for complex power management challenges.
