Products specifications

Manufacturer NXP
Win Source Part Number 1185919-IP4283CZ10-TT
Manufacturer Homepage www.nxp.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IP4283CZ10-TT CAD Model

Description

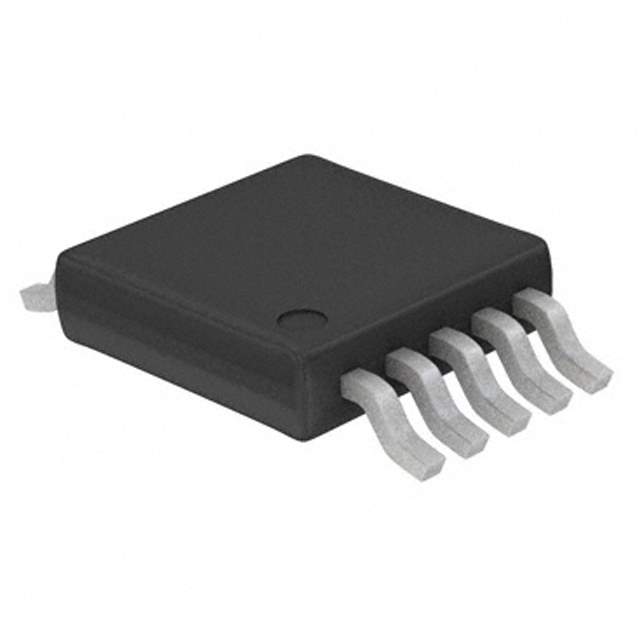

Product Overview: IP4283CZ10-TT

The IP4283CZ10-TT is a high-performance, low-capacitance ESD protection device designed by NXP Semiconductors to safeguard high-speed data lines from electrostatic discharge (ESD) threats. This robust component is specifically tailored for applications that demand stringent protection for sensitive circuits, making it an ideal solution for modern electronic devices.

Key Features

  • ESD Protection: The IP4283CZ10-TT offers exceptional ESD protection, meeting the IEC 61000-4-2 standard and capable of withstanding ESD discharges of up to ±8 kV contact discharge.
  • Low Capacitance: With an ultra-low capacitance design, this device ensures minimal signal attenuation, making it suitable for high-speed data lines without compromising signal integrity.
  • Multiple Channel Protection: The device features ten channels of ESD protection, providing comprehensive coverage for multiple data lines within a single package.
  • Space-saving Design: The IP4283CZ10-TT comes in a compact DFN2510A-10 (SOT1176-1) leadless package, which is perfect for space-constrained applications.

Applications

The versatility of the IP4283CZ10-TT allows it to be used across a wide range of applications where data line protection is critical. It is particularly well-suited for:

  • USB 2.0 and 3.0 interfaces
  • HDMI and DisplayPort interfaces
  • Digital Visual Interface (DVI) applications
  • Mobile and portable devices
  • Set-top boxes and digital TVs
  • Notebook and desktop computers

Quality and Reliability

NXP Semiconductors is renowned for its commitment to quality and reliability, and the IP4283CZ10-TT is no exception. Manufactured with high-precision processes and rigorously tested to meet industry standards, this ESD protection device ensures long-term performance and reliability for critical applications.

Environmental Compliance

The IP4283CZ10-TT is also compliant with environmental regulations, including RoHS and Halogen-Free requirements, reflecting NXP's dedication to environmental sustainability while providing advanced protection for electronic devices.
