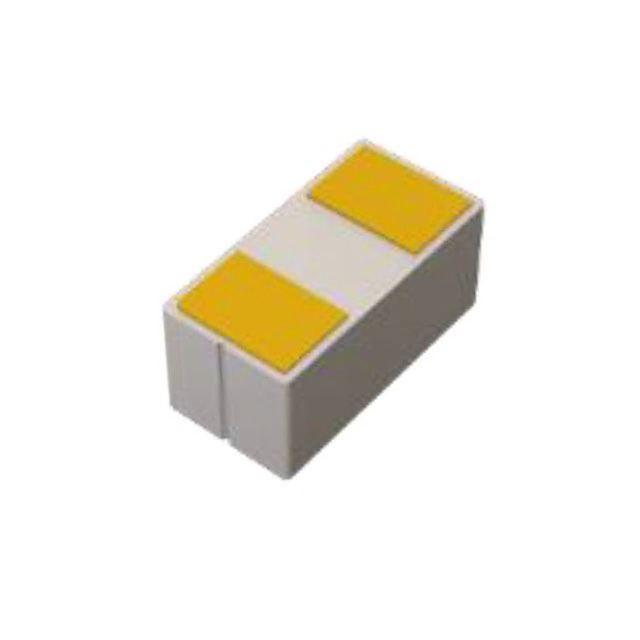

VS5V0BB1EST15R Rohm Semiconductor
Same model may have multiple batches, images only for reference.

VS5V0BB1EST15R

Part No VS5V0BB1EST15R
Manufacturer Rohm Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 5V 11.4V DSN0603-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Maximum)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Maximum) at Ipp 11.4V
Current - Peak Pulse (10/1000μs) 2.2A (8/20μs)
Power - Peak Pulse 25W
Power Line Protection No
Applications Use For General
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 0201 (0603 Metric)
Supplier Device Package DSN0603-2, SOD-962, SMD0603
Manufacturer Pack Quantity 15,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802689-VS5V0BB1EST15R
Ultra Librarian 3D Model Ultra Librarian VS5V0BB1EST15R CAD Model

Description

The Rohm Semiconductor VS5V0BB1EST15R is a zener diode from Rohm Semiconductor.

  • Applications: General Purpose
  • Type: Bidirectional
  • Voltage - Zener (Nom) (Vz): 5V (Maximum)
  • Voltage - Breakdown: 6V
  • Current - Peak Pulse: 2.2A (8/20μs)
  • Power - Peak Pulse: 25W
  • Voltage Clamping (Maximum) @ Ipp: 11.4V
  • Capacitance @ Vr, F: 2pF @ 0V, 1MHz
  • Package / Case: 0201 (0603 Metric)
  • Supplier Device Package: DSN0603-2, SOD-962, SMD0603
  • Temperature Range: -55°C to 150°C
  • Supply and Demand Status: Balanced
