Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Microchip Technology
Package Tube
Diode Configuration 2 Independent
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) (per Diode) 100A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 100 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 60 ns
Current - Reverse Leakage @ Vr 500 µA @ 200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount

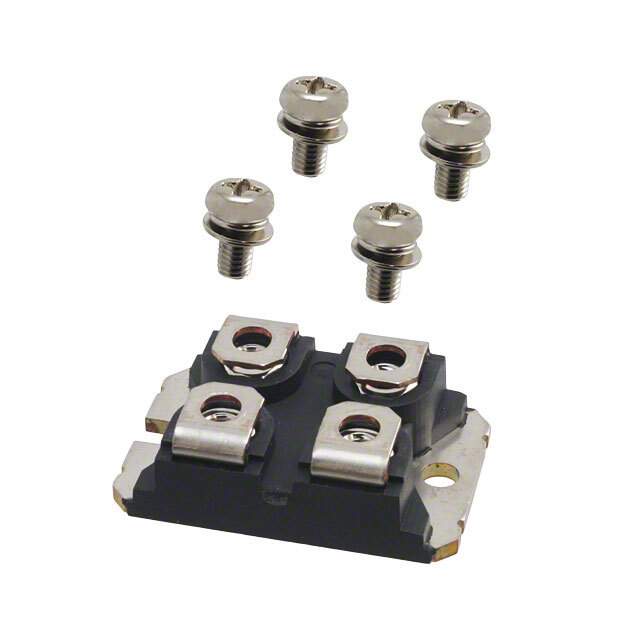

Package / Case SOT-227-4, miniBLOC
Supplier Device Package ISOTOP®
Base Product Number APT2X100
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1352006-APT2X100D20J
Ultra Librarian 3D Model Ultra Librarian APT2X100D20J CAD Model

Description

The APT2X100D20J is a state-of-the-art power MOSFET module designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This advanced power module is engineered to deliver high efficiency and reliability for a wide range of power conversion and switching applications, including motor drives, power inverters, and power supply systems.

Key Features

  • Low On-Resistance: The device features extremely low on-resistance, resulting in reduced conduction losses and improved overall efficiency.
  • High Voltage Capability: With a breakdown voltage of 200V, the APT2X100D20J can handle high voltage applications with ease.
  • Fast Switching Performance: The power MOSFET is optimized for fast switching, which minimizes switching losses and enables operation at higher frequencies.
  • Robust Design: The module is constructed with a rugged design that ensures reliable operation even in harsh conditions.
  • Easy Integration: The APT2X100D20J comes in a compact package that simplifies integration into various electronic assemblies.

Applications

The versatility of the APT2X100D20J makes it suitable for a broad spectrum of applications. It is particularly well-suited for use in high-performance computing systems, renewable energy inverters, industrial motor control circuits, and automotive applications where high efficiency and reliability are paramount.

Technical Specifications

Parameter Value Drain-to-Source Voltage (V<sub>DSS) 200V Continuous Drain Current (I<sub>D) 100A Power Dissipation (P<sub>D) 429W Operating Temperature Range -55°C to +150°C

In conclusion, the APT2X100D20J from Microchip Technology is a robust and efficient solution for designers seeking a high-performance power MOSFET module. Its superior electrical characteristics and thermal performance make it a go-to choice for demanding applications that require precision and durability.
