Products specifications

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Bulk
Status Not For New Designs
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 930mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 10μA @ 200V
Operating Temperature - Junction 150°C (Max)
Mounting Through Hole

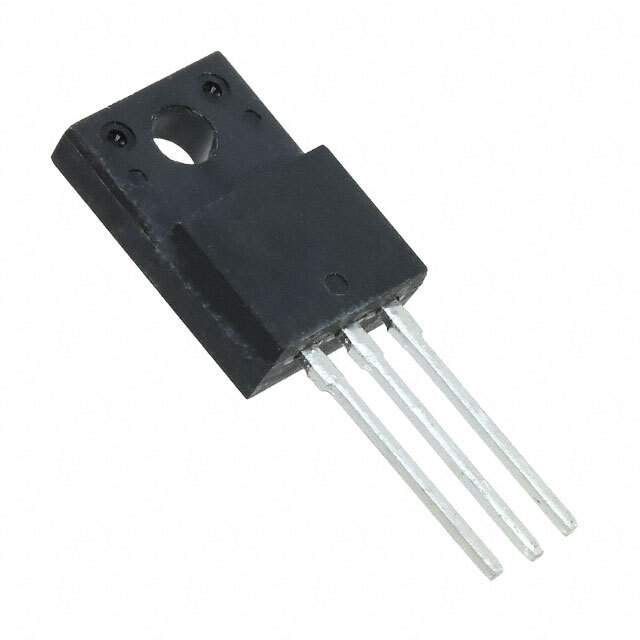

Case / Package TO-220FN
Win Source Part Number 046163-RF2001T2D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2001T2D CAD Model

Description

The RF2001T2D is a Schottky Barrier Diode manufactured by Rohm Semiconductor. It's designed for efficient and high-speed switching applications, characterized by its low forward voltage drop and fast reverse recovery time.

Applications:

  • DC-DC converters: Used for efficient voltage regulation and conversion in power supplies.
  • High-frequency rectification: Utilized in high-frequency circuits where fast switching is essential.
  • Reverse polarity protection: Prevents damage from reverse voltage connections.
  • Power management circuits: Used in a wide range of power management applications.
  • Lighting applications: Employed in LED drivers for improved efficiency and performance.

Features:

  • Low forward voltage drop: Minimizes power loss and increases efficiency.
  • Fast reverse recovery time: Enables high-speed switching and reduces switching losses.
  • High surge current capability: Can withstand large current surges without damage.
  • Surface Mount Device (SMD): Suitable for automated assembly processes.
  • Compact Package: Allows for high-density circuit board designs.

Benefits:

  • Improved efficiency: Reduces energy consumption in various applications.
  • Faster switching speeds: Enhances the performance of switching circuits.
  • Enhanced circuit protection: Provides reliable protection against voltage spikes and reverse polarity issues.
  • Automated assembly: Simplifies manufacturing and reduces production costs.
  • Space-saving design: Enables smaller and more compact electronic devices.

Additional Details:

The RF2001T2D offers a typical forward voltage drop in the range of 0.4V and a very fast reverse recovery time, typically in the nanosecond range. It is housed in a surface-mount package optimized for automated assembly. It is commonly used in portable devices, power supplies, and other industrial applications where both efficiency and reliability are critical.

Always refer to the official Rohm Semiconductor datasheet for complete specifications, including maximum ratings, electrical characteristics, and application notes.
