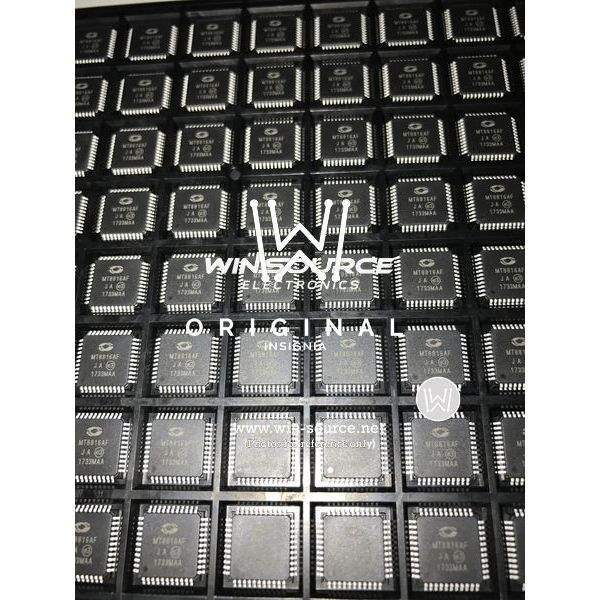

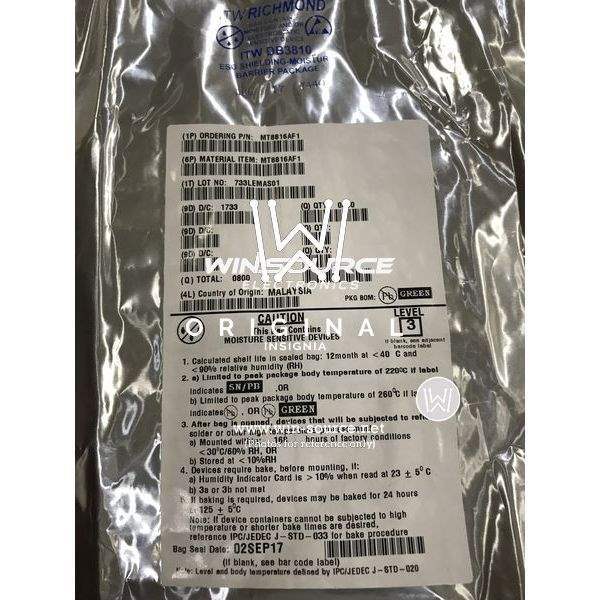

MT8816AF1 Microsemi Corporation MT8816AF1 real image MT8816AF1 label picture
Same model may have multiple batches, images only for reference.
MT8816AF1 Microsemi Corporation MT8816AF1 real image MT8816AF1 label picture
MT8816AF1 Microsemi Corporation MT8816AF1 real image MT8816AF1 label picture
Same model may have multiple batches, images only for reference.

MT8816AF1

Part No MT8816AF1
Manufacturer Microsemi Corporation
Catalog Interface - Analog Switches - Special Purpose
Description Analog Audio/Video 45MHz 8x16 44-Pin TQFP Tray / IC ANLG SWITCH ARRAY 8X16 44TQFP
Datasheet
MT8816AF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Packaging Tube/Rail
Status Active
Applications Telecommunications
Number of Channels 1
Max On Resistance 65 Ohm
Single Supply Voltage (V+) 4.5 V to 13.2 V
Dual Supply Voltage(V±) ±4.5 V
-3db Bandwidth 45MHz
Temperature Range - Operating -40°C to 85°C (TA)
Dimension 44-TQFP
Win Source Part Number 1080958-MT8816AF1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MT8816
Introduction Date July 18, 1995
ECCN EAR99
Country of Origin Malaysia
Ultra Librarian 3D Model Ultra Librarian MT8816AF1 CAD Model

Description

Microsemi Corporation's MT8816AF1 is an active integrated circuit suitable for use in telecommunications. The MT8816AF1 has a -3db bandwidth of 45MHz and a maximum on resistance of 65 Ohm. It operates within a temperature range of -40°C to 85°C and is packaged in a 44-TQFP.
