Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Microchip Technology
Series PICtail™
Package Bulk
Sensor Type Thermistor
Interface Analog
Voltage - Supply 2.5V ~ 5.5V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part MCP6S22, MCP6S92
Base Product Number MCP6SX2
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1342757-MCP6SX2DM-PCTLTH
Ultra Librarian 3D Model Ultra Librarian MCP6SX2DM-PCTLTH CAD Model

Description

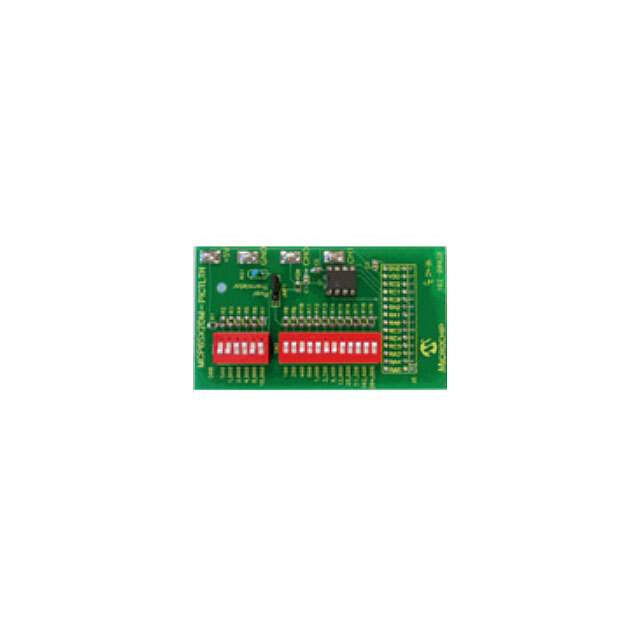

Microchip Technology MCP6SX2DM-PCTLTH Product Overview

The MCP6SX2DM-PCTLTH is a versatile and high-performance product from Microchip Technology, tailored for engineers and developers who require a reliable and efficient solution for their analog applications. This product is part of Microchip's MCP6SX2 family of operational amplifiers (op-amps), which are known for their precision and low power consumption.

Key Features

  • Amplifier Type: The MCP6SX2DM-PCTLTH is a programmable gain amplifier, offering flexibility and ease of use for various signal amplification needs.
  • Power Consumption: It is designed with power efficiency in mind, operating with a low quiescent current that makes it ideal for battery-powered devices and applications where power conservation is critical.
  • Gain Configuration: Users can configure the gain settings through digital inputs, allowing for precise control over the amplification process without the need for external resistors.
  • Voltage Range: The device supports a wide supply voltage range, accommodating various levels of signal voltages and ensuring compatibility with a broad range of other components and systems.
  • Performance: With its high accuracy and low noise characteristics, the MCP6SX2DM-PCTLTH delivers superior performance, making it suitable for high-precision applications such as sensor interfacing, ADC drivers, and filter circuits.

Applications

The MCP6SX2DM-PCTLTH is a versatile component that can be utilized in a multitude of applications. Its precision and programmability make it particularly well-suited for:

  • Medical instrumentation
  • Portable devices
  • Data acquisition systems
  • Industrial process controls
  • Analog signal conditioning

Microchip Technology's commitment to quality ensures that the MCP6SX2DM-PCTLTH meets the stringent requirements of industrial and commercial applications, providing a reliable solution for designers looking to optimize their analog signal processing capabilities.

Additional Information

For further details, including datasheets, technical specifications, and support resources, customers are encouraged to visit the official Microchip Technology website. There, one can find comprehensive documentation and support to facilitate the integration of the MCP6SX2DM-PCTLTH into their projects.
