Same model may have multiple batches, images only for reference.

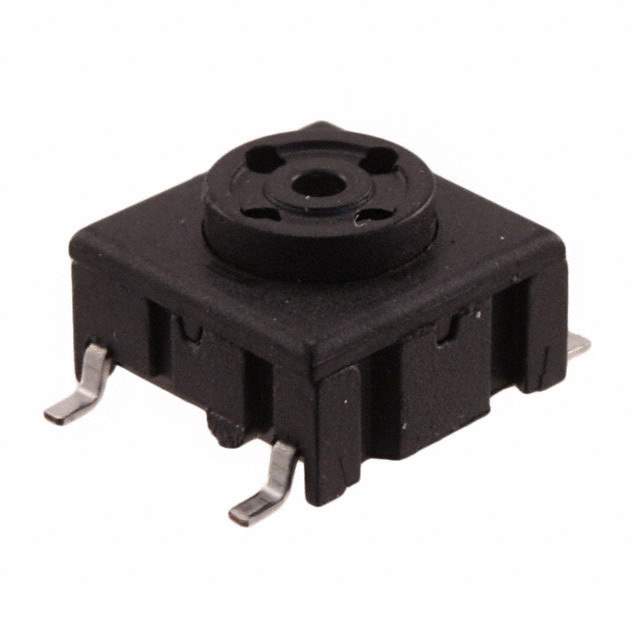

5ESH935 Real Image
Same model may have multiple batches, images only for reference.

5ESH935

Part No 5ESH935
Manufacturer MEC Switches
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr MEC Switches
Series Multimec® 5
Package Tube
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 6.40mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 10.10mm x 10.10mm
Illumination Non-Illuminated
Operating Force 350gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Sealed - Flux Protection
Temperature Range - Operating -40°C ~ 160°C
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel 1.00mm
Mechanical Life 10,000,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 679-2579
Standard Package 100
Win Source Part Number 1131369-5ESH935
Ultra Librarian 3D Model Ultra Librarian 5ESH935 CAD Model

Description

The MEC Switches Multimec 5 Tactile Switch is a gull wing sealed switch with flux protection.

  • Ingress Protection: IP67
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Mounting: SMD (SMT)
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Plunger for cap
  • Switch Travel: 1.00mm
  • Contact Rating: 0.05A @ 24VDC
  • Actuator Orientation: Top Actuated
  • Operating Force: 350gf
  • Mechanical Life: 10,000,000 cycles
  • Temperature Range: -40°C ~ 160°C
  • Package Quantity: 100 units
