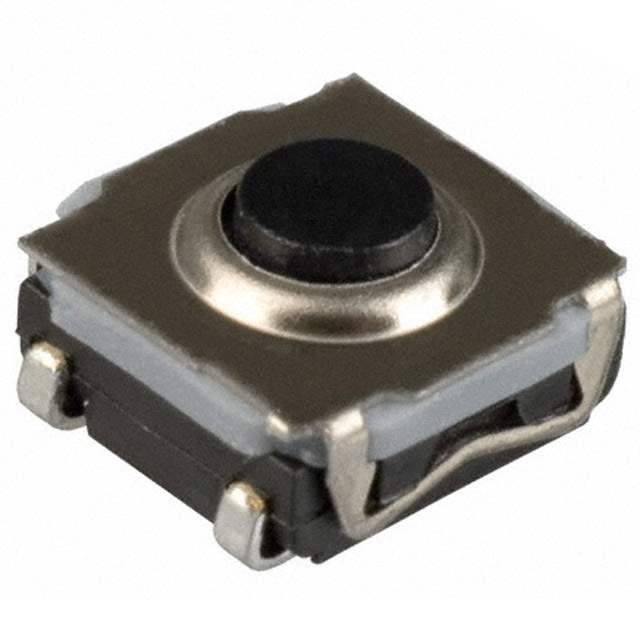

Same model may have multiple batches, images only for reference.

KSC321JLFS

Name: KSC321JLFS
Brand: C&K Components
SKU: 171069
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	KSC321JLFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 32V
Datasheet	KSC321JLFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	C&K Components
Packaging	Reel - TR
Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 32VDC
Actuator Type	Standard
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	3.50mm
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	6.20mm x 6.20mm
Illumination	Non-Illuminated
Operating Force	200gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Switch Travel	0.20mm
Mechanical Life	300,000 Cycles
Temperature Range - Operating	-40°C to 85°C
Win Source Part Number	040957-KSC321JLFS
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian KSC321JLFS CAD Model

Description

The KSC321JLFS is a switch from C&K Components that features J Lead termination style and has an ingress protection of IP67, making it dust tight and waterproof.

Circuit: SPST-NO
Switch function: Off-Mom.
Actuator type: standard
Switch travel: 0.20mm.
Contact rating: 0.05A @ 32VDC
Operating force: 200gf.
Mechanical life: 300,000 cycles
Temperature range: -40°C to 85°C.
Status: not obsolete
Popularity: medium.
