Same model may have multiple batches, images only for reference.

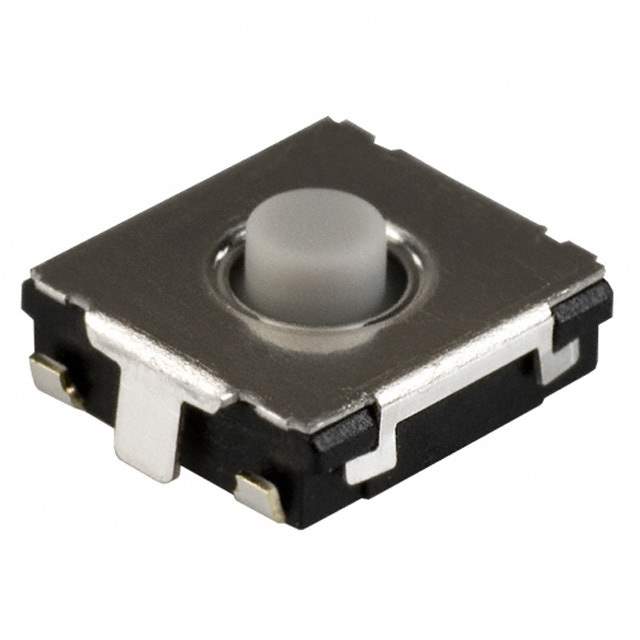

EVQ-P0N02B Real Image
Same model may have multiple batches, images only for reference.

EVQ-P0N02B

Part No EVQ-P0N02B
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQP0
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 60gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.30mm
Mechanical Life 2,000,000 Cycles
Base Product Number EVQ-P0
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names P12965STR,P12965SCT,EVQP0N02B,P12965SDKR
Standard Package 2,000
Win Source Part Number 984093-EVQ-P0N02B
Ultra Librarian 3D Model Ultra Librarian EVQ-P0N02B CAD Model

Description

Panasonic Electronic Components' EVQ-P0N02B is a tactile switch with an operating force of 60gf and a switch travel of 0.30mm.

  • Packaging: Tape and Reel
  • Standard Package: 2,000
  • Circuit Type: SPST-NO
  • Actuation: Top-Actuated
  • Illumination: Non-Illumination
  • Contact Rating: 0.02A @ 15VDC
  • Mechanical Life: 2,000,000 cycles
  • Operating Temperature Range: -40 to 85 degrees Celsius
