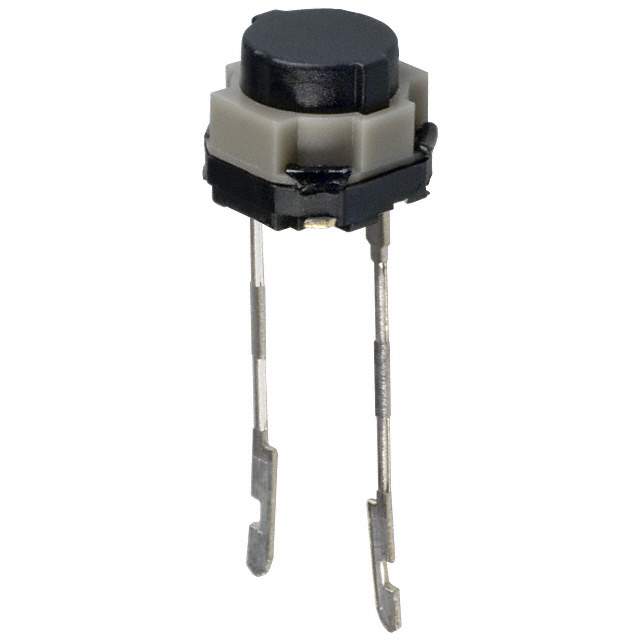

EVQ-PVA05K Real Image
Same model may have multiple batches, images only for reference.

EVQ-PVA05K

Part No EVQ-PVA05K
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V  /  Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQPV
Package Cut Tape (CT),Tape & Box (TB)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.10mm x 6.00mm
Illumination Non-Illuminated
Operating Force 220gf
Temperature Range - Operating -30°C ~ 85°C
Switch Travel 1.00mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-PV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names P10855SCT,P10855STB,P10855STB-NDR,EVQPVA05K,P10855SCT-NDR,2266-EVQ-PVA05K
Standard Package 2,500
Win Source Part Number 980871-EVQ-PVA05K
Ultra Librarian 3D Model Ultra Librarian EVQ-PVA05K CAD Model

Description

This electronic component is a switch manufactured by Panasonic Electronic Components.

  • Win Source Part Number: 980871-EVQ-PVA05K
  • Category: Switches > Tactile Switches
  • Series: EVQPV
  • Termination Style: PC Pin
  • Package: Cut Tape (CT), Tape & Box (TB)
  • Actuator Material and Features: Not Specified
  • Switch Type: Single Pole, Single Throw Off-Mom
  • Actuator Type: Top Actuated
  • Switch Travel: 1.00mm
  • Contact Rating @ Voltage: 0.05A @ 12VDC
  • Outline: 6.10mm x 6.00mm
  • Illumination: Non-Illuminated
  • Operating Force: 220gf
  • Mechanical Life: 100,000 Cycles
  • Mounting Type: Through-Hole
  • Temperature Range (Operating): -30°C to 85°C
  • Actuator Height off PCB, Vertical: 5.00mm
  • Actuator Length, Right Angle: Not Specified
  • ECCN: EAR99
  • HTSUS: 8536.50.9031
  • Other Names: P10855SCT, P10855STB, P10855STB-NDR, EVQPVA05K, P10855SCT-NDR, 2266-EVQ-PVA05K
  • Base Product Number: EVQ-PV
