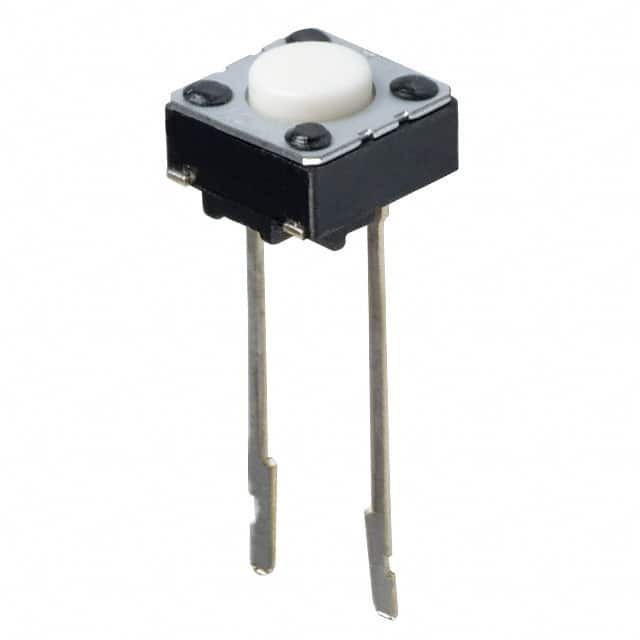

EVQ-21504M
Same model may have multiple batches, images only for reference.

EVQ-21504M

Part No EVQ-21504M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Features Tactile Switch SPST-NO Top Actuated Through Hole
Manufacturer Panasonic
Series EVQ2
Package Cut Tape (CT), Tape & Box (TB)
Part Status Obsolete
Operating Temperature Range -20°C ~ 70°C
Mounting Through Hole
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number P12224STB, P12224STB-NDR, EVQ-21504M-ND, EVQ21504M, P12224SCT, P12224SCT-NDR, Q4218443
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871298-EVQ-21504M
Ultra Librarian 3D Model Ultra Librarian EVQ-21504M CAD Model

Description

The EVQ2 series from Panasonic is a tactile switch SPST-NO top-actuated through-hole switch.

  • Operating Temperature: -20°C ~ 70°C
  • Package: Cut Tape (CT) and Tape & Box (TB)
  • Mounting: Through-Hole
  • Product Status: Obsolete
  • Category: Switches
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.9031
