Products specifications Report Issue?

Category RF and Wireless - RF Transmitters
Mfr Maxim Integrated
Package Bulk
Product Status Active
Programmable Not Verified
Frequency 1.7GHz ~ 2GHz
Applications TDMA, WAN, Wireless LAN
Modulation or Protocol FM
Power - Output 9dBm ~ 12dBm
Current - Transmitting 105mA ~ 123mA
Data Interface SPI
Features PLL Frequency Synthesizer and PA
Voltage - Supply 2.7V ~ 3V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount

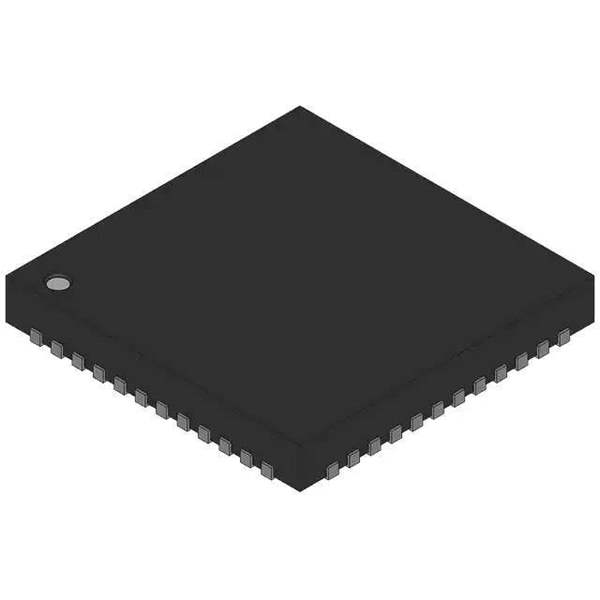

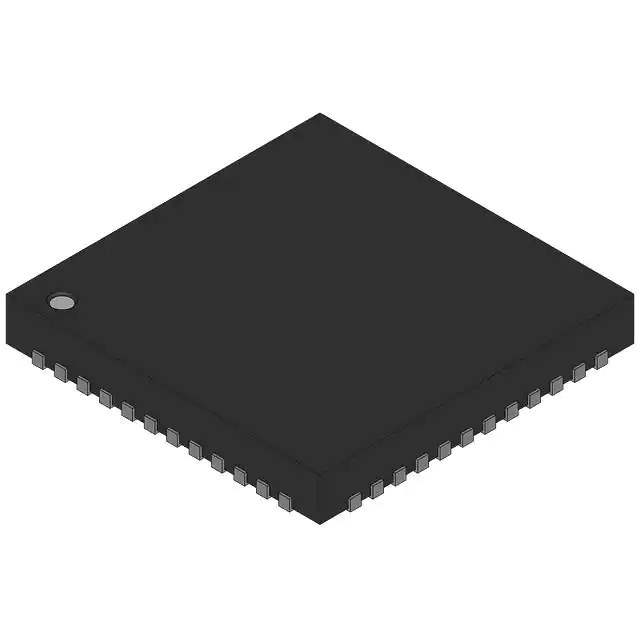

Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-QFN (7x7)
Standard Package 45 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 747234-MAX2369EGM
Ultra Librarian 3D Model Ultra Librarian MAX2369EGM CAD Model

Description

The MAX2369EGM is a state-of-the-art RF transceiver from Maxim Integrated, designed to offer a high-performance solution for advanced wireless communication systems. This versatile chip is particularly suitable for applications in the 900MHz ISM (Industrial, Scientific, and Medical) and 2.5G/3G cellular bands, making it an ideal choice for a wide range of devices including smartphones, tablets, GPS units, and wireless infrastructure equipment.

Key Features

  • Frequency Range: The device operates over a broad frequency range, providing flexibility for use in various communication standards.
  • Integration: The MAX2369EGM integrates multiple functions such as a low-noise amplifier, mixer, filter, and voltage-controlled oscillator (VCO), reducing the need for external components and simplifying the design process.
  • Performance: With its high linearity and low noise figure, the transceiver delivers excellent signal quality, which is crucial for maintaining reliable communication links.
  • Power Efficiency: The device is designed for low power consumption, helping to extend battery life in portable applications.
  • Programmability: It offers programmable features that allow customization for specific application requirements.

Applications

The versatility of the MAX2369EGM makes it suitable for a diverse set of applications. It can be used in:

  • Wireless Local Loop (WLL) systems
  • Wireless data modems
  • Base station transceivers
  • Fixed wireless access systems
  • General RF subsystems

Package and Quality

The MAX2369EGM comes in a compact, surface-mount package, which is conducive to modern, space-constrained electronic designs. Maxim Integrated ensures that the product meets high-quality standards, with rigorous testing and quality control measures in place to guarantee performance and reliability.

For engineers and designers looking for a robust and flexible RF solution, the MAX2369EGM transceiver from Maxim Integrated offers an excellent blend of performance, integration, and efficiency, making it a top choice for cutting-edge wireless applications.
