Products specifications Report Issue?

Categories Audio Products
Manufacturer Knowles
Packaging Reel - TR
Status Obsolete(EOL)
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz to 8kHz
Sensitivity -22dB ±4dB @ 94dB SPL
S/N Ratio 59dB
Impedance 100 Ohm
Voltage Range 1.5 to 5.5V
Operating Supply Current 350μA
Port Location Top
Termination Surface Mount
Height (Max) 0.067" (1.70mm)
Shape Rectangular
Win Source Part Number 119292-SPM0103ND3-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SPM0103ND3-2 CAD Model

Description

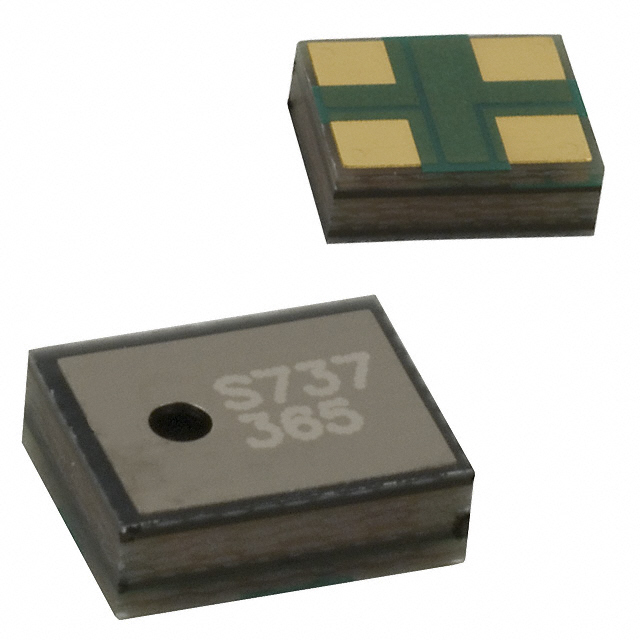

The Knowles SPM0103ND3-2 is a miniature silicon microphone designed for a wide range of audio applications. It is known for its small size, low power consumption, and high signal-to-noise ratio, making it suitable for integration into compact and battery-powered devices.

Applications:

  • Mobile Phones: Used for voice communication and recording.
  • Tablets: Integrated for video conferencing and audio recording.
  • Bluetooth Headsets: Enables clear voice transmission.
  • Wearable Devices: Ideal for smartwatches and fitness trackers requiring voice input.
  • Hearing Aids: Providing clear and amplified sound for users.
  • Voice Recorders: Used in digital voice recorders for capturing audio.
  • IoT Devices: Incorporated into smart home devices for voice control and interaction.

Features:

  • Small Form Factor: Miniature size allows for integration into compact devices.
  • Low Power Consumption: Extends battery life in portable applications.
  • High Signal-to-Noise Ratio (SNR): Ensures clear audio capture with minimal background noise.
  • Omnidirectional Polar Pattern: Captures sound from all directions equally.
  • Digital Output: Provides a digital signal that simplifies integration with digital processors.
  • Surface Mount Technology (SMT): Designed for automated assembly processes.
  • RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits:

  • Enhanced Audio Clarity: High SNR provides clearer voice and audio recordings.
  • Extended Battery Life: Low power consumption is crucial for portable devices.
  • Design Flexibility: Small size allows for greater freedom in product design.
  • Improved Voice Recognition: Clear audio capture enhances the accuracy of voice recognition systems.
  • Reliable Performance: Knowles is a reputable manufacturer known for quality and reliability.
  • Simplified Integration: Digital output simplifies the connection to digital signal processors (DSPs) and microcontrollers.
  • Durable Construction: Resistant to environmental factors and mechanical stress.

The SPM0103ND3-2 typically operates within a voltage range of 1.6 to 3.6V and features a sensitivity of around -42 dBV/Pa. Its omnidirectional polar pattern ensures consistent audio capture regardless of the sound source's position. This microphone is designed for reflow solder assembly, making it suitable for high-volume manufacturing. The digital output eliminates the need for external amplifiers, further simplifying circuit design and reducing overall system cost. With its combination of small size, low power, and high performance, the Knowles SPM0103ND3-2 is a versatile microphone solution for a wide variety of audio applications.
