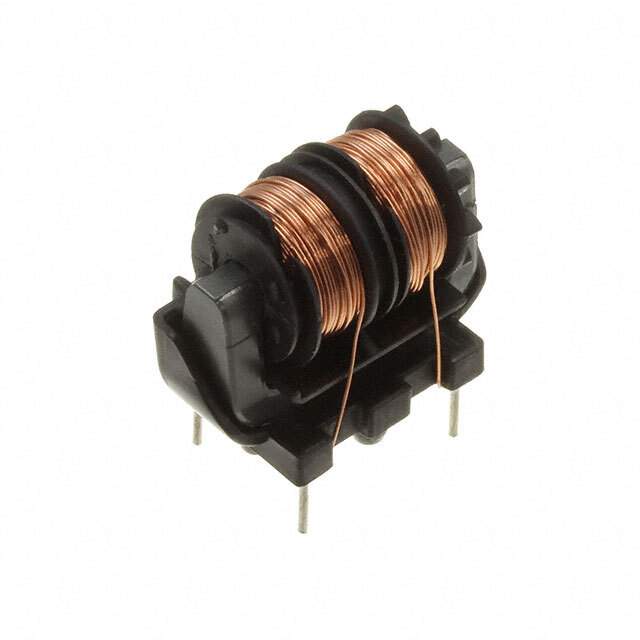

SSR10V-06475 Real Image
Same model may have multiple batches, images only for reference.

SSR10V-06475

Part No SSR10V-06475
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 47.5 mH @ 10 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 1.3Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10V
Other Names UALR10V0647500,399-19027
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276581-SSR10V-06475
Ultra Librarian 3D Model Ultra Librarian SSR10V-06475 CAD Model

Description

The Kemet 1276581-SSR10V-06475 is a Common Mode Choke that is designed for use in electronic circuits.

  • Voltage Rating: 250V
  • Current Rating: 600mA
  • Package: bulk
  • Standard Package: 600
