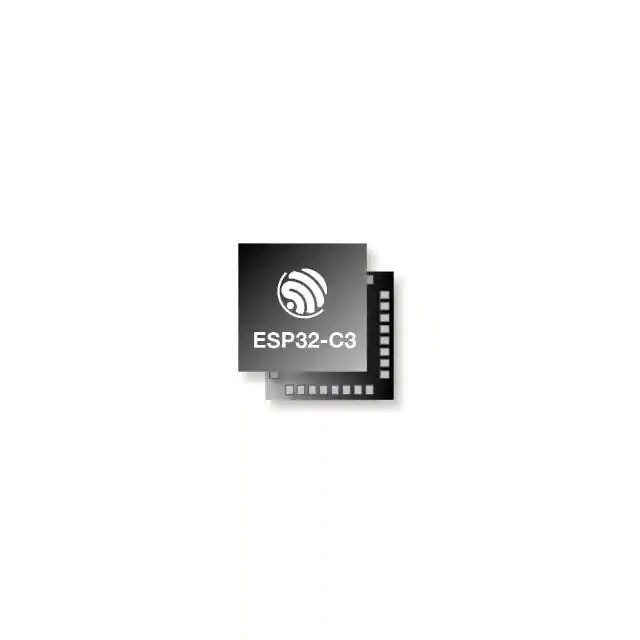

Same model may have multiple batches, images only for reference.
ESP32-C3-MINI-1U-H4 Espressif
Same model may have multiple batches, images only for reference.

ESP32-C3-MINI-1U-H4

Part No ESP32-C3-MINI-1U-H4
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD MODULE, ESP32-C3FH4, IPEX AN / Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.412GHz ~ 2.484GHz Antenna Not Included, U.FL Surface Mount
Datasheet
ESP32-C3-MINI-1U-H4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32-C3
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v5.0
Modulation -
Frequency 2.412GHz ~ 2.484GHz
Data Rate 150Mbps
Power - Output 20.5dBm
Sensitivity -104dBm
Serial Interfaces ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, USB
Antenna Type Antenna Not Included, U.FL
Utilized IC / Part ESP32-C3FH4
Memory Size 4MB Flash, 384kB ROM, 408kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 82mA ~ 84mA
Current - Transmitting 290mA ~ 350mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case 53-SMD Module
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1370916-ESP32-C3-MINI-1U-H4
Ultra Librarian 3D Model Ultra Librarian ESP32-C3-MINI-1U-H4 CAD Model

Description

The ESP32-C3-MINI-1U-H4 is a high-performance RF transceiver module and modem developed by Espressif Systems. It operates in the frequency range of 2.412GHz to 2.484GHz and supports Bluetooth and WiFi protocols.

  • Frequency Range: 2.412GHz to 2.484GHz
  • Protocols: Bluetooth and WiFi
  • Voltage Supply Range: 3V to 3.6V
  • Memory: 4MB Flash, 384kB ROM, and 408kB SRAM
  • Data Rate: 150Mbps
  • Mounting Type: surface mountable
  • Package: 53-SMD module
  • Serial Interfaces: ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, and USB
  • Power Output: 20.5dBm
  • Sensitivity: -104dBm
