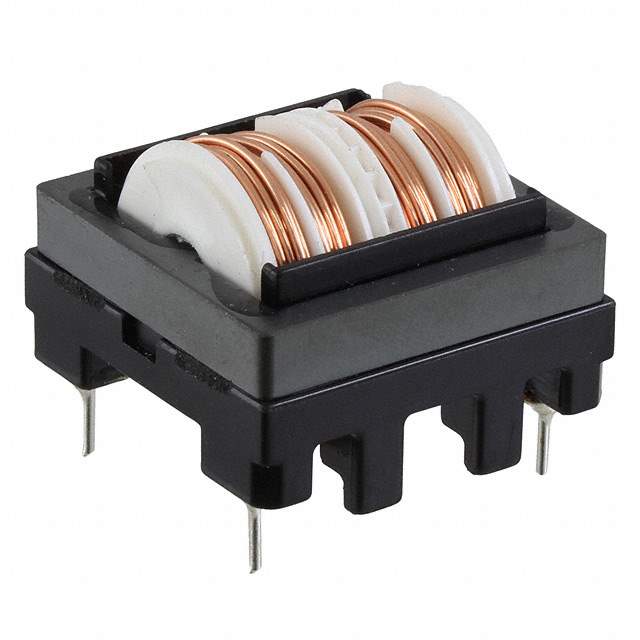

SS28H-20075-CH Real Image
Same model may have multiple batches, images only for reference.

SS28H-20075-CH

Part No SS28H-20075-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 7.5 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 220mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) 0.965" (24.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS28H
Other Names 399-10754,UAL28H20075CH0
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276748-SS28H-20075-CH
Ultra Librarian 3D Model Ultra Librarian SS28H-20075-CH CAD Model

Description

The KEMET SS28H-20075-CH is a common mode choke designed for use in filters.

  • Voltage Rating: 250V AC
  • Current Rating: 2A
  • Inductance: 7.5 mH @ 1 kHz
  • DC Resistance: 220mOhm
  • Mounting: through a hole
  • Package: bulk
  • Standard Packages: 200
  • Height: 0.965 inches (24.50mm)
  • Number of Lines: 2
  • Temperature Range: -25°C to 120°C
  • Dimensions: 1.181 inches L x 1.181 inches W (30.00mm x 30.00mm)
