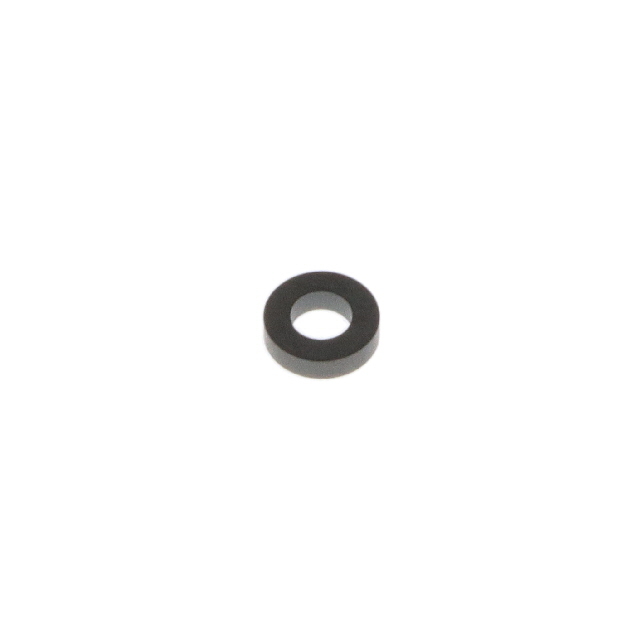

Same model may have multiple batches, images only for reference.
5698362321 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5698362321

Part No 5698362321
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE PS SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type PS
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2400
Core Factor (ΣI/A) mm⁻¹ 29.0
Effective Length (le) mm 55.3
Effective Area (Ae) mm2 164.0
Effective Magnetic Volume (Ve) mm3 9780.0
Finish Uncoated
Height 0.429" (10.90mm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528088-5698362321
Ultra Librarian 3D Model Ultra Librarian 5698362321 CAD Model

Description

N
