Same model may have multiple batches, images only for reference.

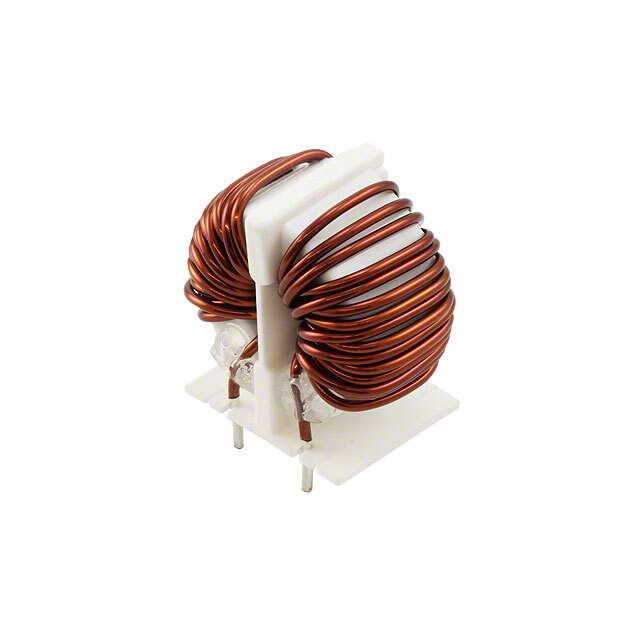

SC-10-10J Real Image
Same model may have multiple batches, images only for reference.

SC-10-10J

Part No SC-10-10J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-10
Other Names UALSC1010J0000,399-10655
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277095-SC-10-10J
Ultra Librarian 3D Model Ultra Librarian SC-10-10J CAD Model

Description

The KEMET 1046826 is a common mode choke filter with a series of SC.

  • Voltage Rating: 250V (AC and DC)
  • Current Rating: 10A
  • Package: Bulk
  • Mounting Style: Through Hole
  • Height: 1.299" (33.00mm)
  • Number of Lines: 2
  • Application: Power Line
  • Inductance: 1 mH @ 100 kHz
  • Temperature Range: -25°C to 105°C
