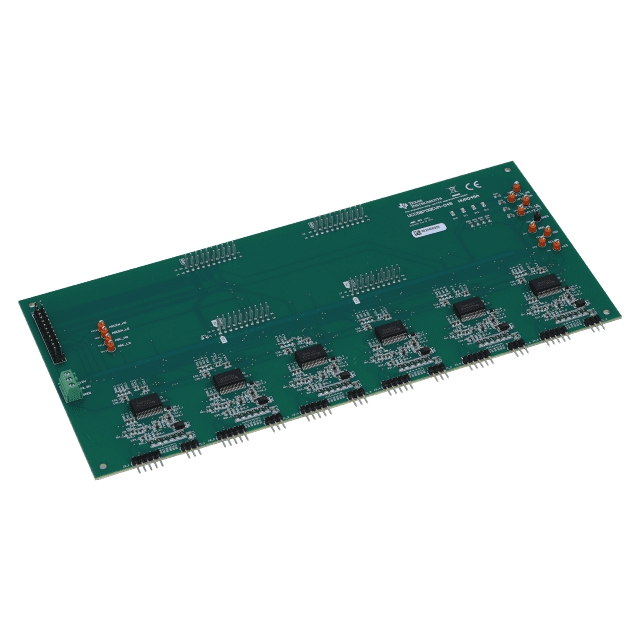

The UCC5870QEVM-045 from Texas Instruments is an advanced evaluation module designed for testing and development with the UCC5870-Q1 isolated gate driver. This evaluation module is an essential tool for engineers looking to explore the capabilities of the UCC5870-Q1, which is optimized for driving silicon carbide (SiC) MOSFETs and IGBTs in a variety of applications, including electric vehicles, industrial motor drives, and power supply systems.

Key Features

• Integrated Isolation: The UCC5870-Q1 offers reinforced isolation up to 5.7 kV RMS, making it suitable for high-voltage applications that require strict safety standards.
• Flexible Configuration: With multiple configuration options, the UCC5870QEVM-045 allows users to customize gate drive settings, dead time, and fault management features to suit specific application needs.
• Diagnostics and Protection: The module includes advanced diagnostics and protection features such as desaturation detection, UVLO, and overtemperature shutdown, ensuring safe operation under various conditions.
• High Drive Strength: Capable of delivering high peak-source and sink-currents, the UCC5870-Q1 is designed to switch power devices efficiently and with minimal delay.

Benefits

The UCC5870QEVM-045 provides a convenient platform for quick prototyping and testing, reducing development time and accelerating time-to-market for new designs. Its user-friendly interface and comprehensive documentation facilitate easy setup and experimentation.

Applications

• Electric Vehicle (EV) Powertrain Systems
• Renewable Energy Inverters
• Industrial Motor Drives
• High-Voltage DC/DC Converters

Overall, the UCC5870QEVM-045 Evaluation Module is an invaluable asset for engineers and designers working on cutting-edge power electronics, providing a rich set of features to explore the full potential of the UCC5870-Q1 isolated gate driver.
