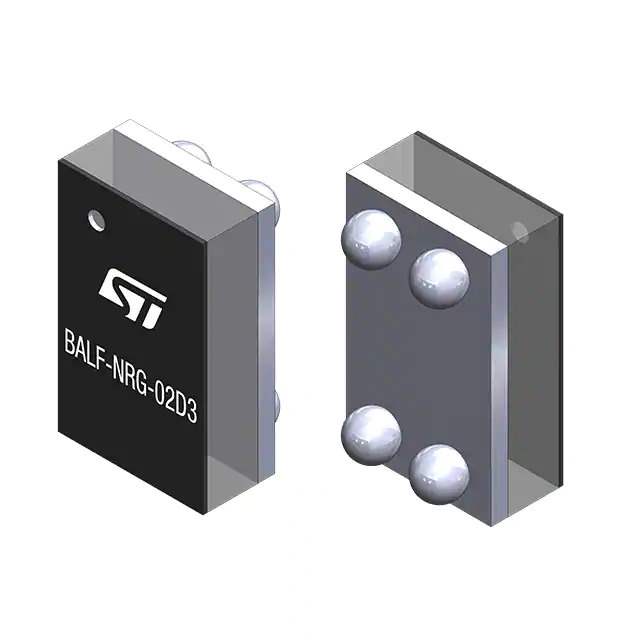

The BALF-NRG-02D3 is an innovative product from STMicroelectronics that combines a balun and harmonics filter in a highly integrated package, designed to simplify RF circuitry for applications using the STM32 family and BlueNRG, ST's Bluetooth Low Energy (BLE) chipsets.

Key Features

• Integration: The device integrates matching network and harmonics filter, which minimizes the need for external components and reduces PCB space requirements.
• Size: With its ultra-compact footprint of 1.7 x 1.3 mm, it is ideal for space-constrained applications such as wearable technology, smart sensors, and IoT devices.
• Performance: It offers excellent RF performance, with a low insertion loss and high rejection of the second and third harmonics, ensuring a clean signal for both transmission and reception.
• Compatibility: Specifically designed to be used with ST's BlueNRG-1, BlueNRG-2, and STM32 wireless microcontrollers, providing a seamless and efficient design solution.

Applications

The BALF-NRG-02D3 is suitable for a wide range of applications, including but not limited to:

• Wearable devices
• Wireless sensors
• Healthcare monitors
• Smart home automation
• IoT devices

Advantages

One of the primary advantages of the BALF-NRG-02D3 is its ease of integration. By consolidating multiple RF components into a single package, designers can save on both board space and the cost associated with additional components. Additionally, the pre-matched balun and filter configuration simplifies the RF design process, reducing time to market for new products.

Conclusion

In summary, the BALF-NRG-02D3 from STMicroelectronics is a highly integrated, space-saving solution that enhances the performance of RF circuits. Its compatibility with popular STM32 and BlueNRG platforms makes it an excellent choice for developers looking to streamline their designs while maintaining high-quality wireless communication capabilities in compact and power-sensitive applications.
