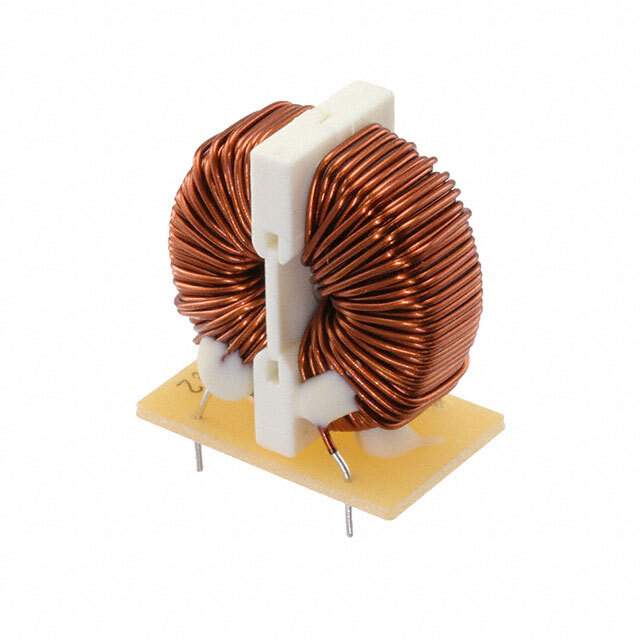

SC-02-E120J Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 180mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.945" L x 0.630" W (24.00mm x 16.00mm)
Height (Max) 0.984" (25.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names UALSC02E120J00,399-SC-02-E120J
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276995-SC-02-E120J
Ultra Librarian 3D Model Ultra Librarian SC-02-E120J CAD Model

Description

The KEMET SC-02-E120J is a common mode choke filter that is used for power line filtering.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 2A
  • Standard Package: 150
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: 25°C to 120°C
  • Dimension: 0.945' L x 0.630' W (24.00mm x 16.00mm)
  • Inductance: 12mH @ 10kHz
  • DC Resistance: 180mOhm
  • Mounting: Through hole mounting
  • Package: Tray
