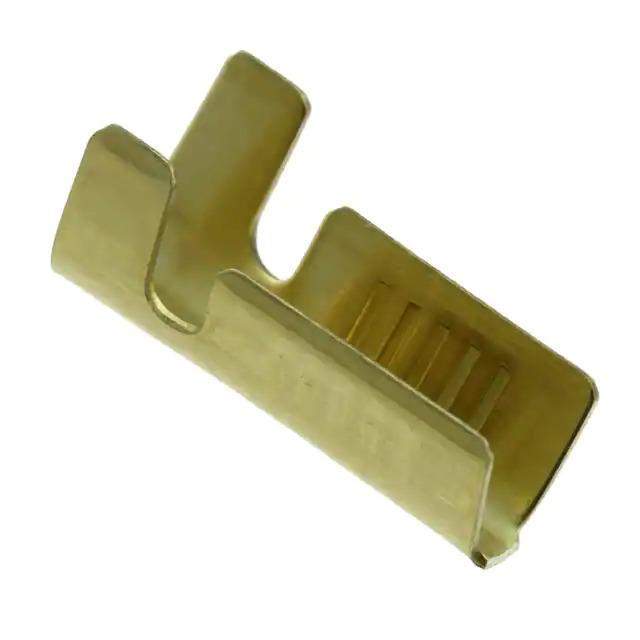

925553-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire to Board Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Through Board
Hole Diameter 0.106" (2.69mm)
Insulation Diameter 0.098" ~ 0.150" (2.50mm ~ 3.81mm)
Length - Overall 0.453" (11.51mm)
Wire Gauge 13.5-17 AWG
Contact Material Brass
Contact Finish -
Base Product Number 925553
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364698-925553-1
Ultra Librarian 3D Model Ultra Librarian 925553-1 CAD Model

Description

The TE Connectivity AMP Connectors wire-to-board terminal connector is a versatile component for various electronic applications.

  • Wire Gauge: 13.5-17 AWG
  • Terminal Type: Through-board
  • Overall Length: 0.453" (11.51mm)
  • Hole Diameter: 0.106" (2.69mm)
  • Contact Material: Brass
  • Insulation Diameter: 0.098" to 0.150" (2.50mm to 3.81mm)
  • Package: Tape and reel
  • Manufacturer: TE Connectivity AMP Connectors
