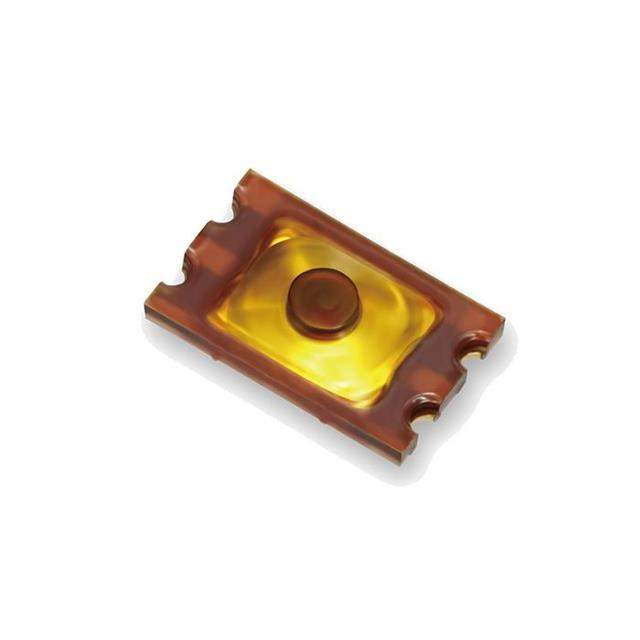

LS129C2D1-T Real Image1 LS129C2D1-T Real Image2
Same model may have multiple batches, images only for reference.
LS129C2D1-T Real Image1 LS129C2D1-T Real Image2
LS129C2D1-T Real Image1 LS129C2D1-T Real Image2
Same model may have multiple batches, images only for reference.

LS129C2D1-T

Part No LS129C2D1-T
Manufacturer Citizen
Catalog Tactile Switches
Description TOP-PRESS TACTILE SWITCH / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Citizen
Series LS129C
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.60mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.20mm x 2.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 163gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Temperature Range - Operating -
Actuator Material -
Switch Travel 0.13mm
Mechanical Life 300,000 Cycles
Base Product Number LS129C
Moisture Sensitivity Level (MSL) Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Standard Package 5,000 pcs
Win Source Part Number 1382547-LS129C2D1-T
Ultra Librarian 3D Model Ultra Librarian LS129C2D1-T CAD Model

Description

The 1382547-LS129C2D1-T is a tactile switch from Citizen.

  • Series: LS129C
  • Termination Style: SMD (SMT) Tab
  • Protection: Dust Tight, Waterproof (IP67)
  • Configuration: SPST-NO
  • Function: Off-Momentary
  • Actuator Type: Standard
  • Switch Travel: 0.13mm
  • Contact Rating: 0.02A @ 12VDC
  • Outline: 3.20mm x 2.00mm
  • Actuation: Top Actuated
  • Illumination: Non-Illuminated
  • Operating Force: 163gf
  • Mounting Type: Surface Mount
  • Mechanical Life: 300,000 Cycles
