Same model may have multiple batches, images only for reference.

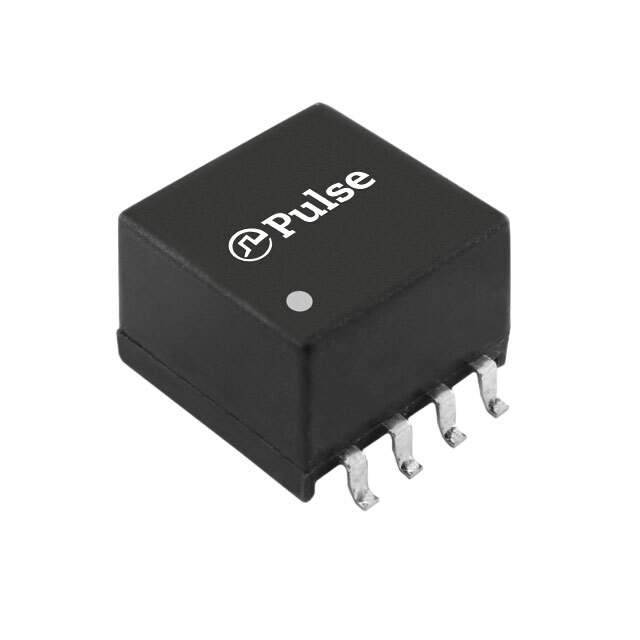

PE-65848NLT Real Image
Same model may have multiple batches, images only for reference.

PE-65848NLT

Part No PE-65848NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 1CS:1CS FOR ECHELON/NEURON / 3.5mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CS:1CS Surface Mount
Datasheet
PE-65848NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Pulse Electronics
Packaging Reel - TR
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 3.5mH
Mounting Surface Mount
Size / Dimension 0.475" L x 0.475" W (12.06mm x 12.06mm)
Height - Seated (Max) 0.340" (8.64mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.14 oz (3.99 g)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 553-3846-6,PE-65848NLT-ND,553-3846-1,553-3846-2
Standard Package 250
Win Source Part Number 1330292-PE-65848NLT
Ultra Librarian 3D Model Ultra Librarian PE-65848NLT CAD Model

Description

The Pulse Electronics 1330292-PE-65848NLT transformer is a surface mount device designed for use in isolation and data interface applications.

  • Manufacturer: Pulse Electronics
  • Mounting Type: Surface Mount
  • Size: 0.475" L x 0.475" W (12.06mm x 12.06mm)
  • Weight: 0.14 oz (3.99 g)
  • Inductance: 3.5mH
  • Operating Temperature: -40°C to 85°C
  • RoHS Compliant: Yes
  • Packaging: Reel
  • Units per Package: 250
