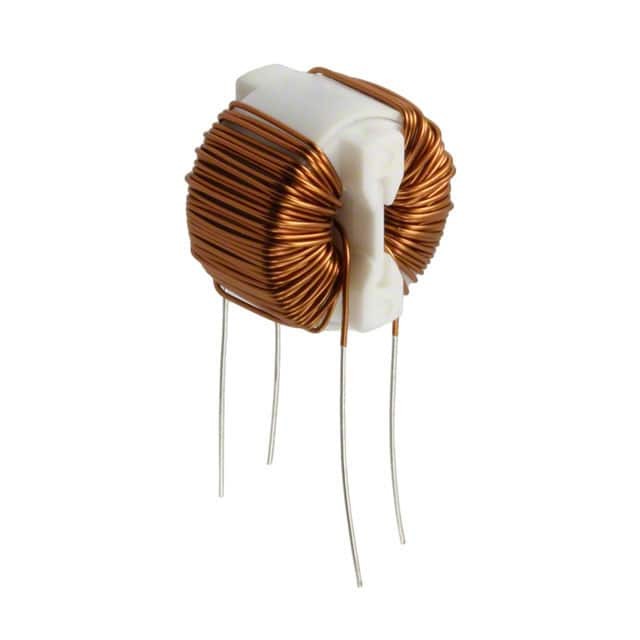

Part No SC-01-80G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8 mH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-01
Other Names 399-10633,UALSC0180G0000
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277028-SC-01-80G
Ultra Librarian 3D Model Ultra Librarian SC-01-80G CAD Model

Description

The KEMET SC series common mode choke is a power line filter with a voltage rating of 250VAC/DC and a current rating of 1A.

  • Voltage Rating: 250VAC/DC
  • Current Rating: 1A
  • Mounting: Through hole
  • Inductance: 8mH @ 100kHz
  • DC Resistance: 300mOhm
  • Packaging: Bulk
  • Standard Package: 1300
  • Height: 17.50mm
  • Diameter: 0.689 inches
  • Filter Type: Power line
  • Lines: Two
  • Temperature Range: -25°C to 105°C
