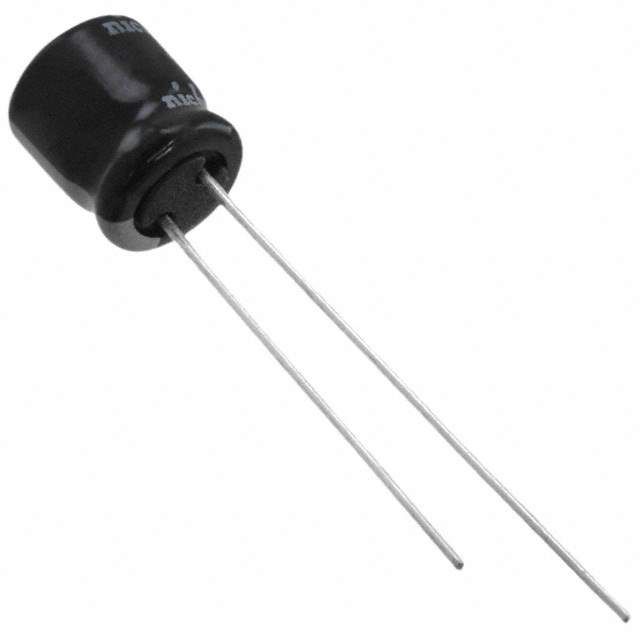

Same model may have multiple batches, images only for reference.

USV1H220MFD

Name: USV1H220MFD
Brand: Nichicon
SKU: 695684
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	USV1H220MFD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	ALUMINUM ELECTROLYTIC CAPACITORS
Datasheet	USV1H220MFD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	USV
Packaging	Bulk
Capacitance	22μF
Tolerance	±20%
Voltage Rating DC	50V
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	65mA @ 120Hz
Ripple Current - High Frequency	97.5mA @ 10kHz
Lead Spacing	0.138" (3.50mm)
Size	0.315" Dia (8.00mm)
Height - Seated (Maximum)	0.315" (8.00mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	1278372-USV1H220MFD
Manufacturer Homepage	www.nichicon-us.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SV
Introduction Date	August 24, 2015
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian USV1H220MFD CAD Model

Description

The Nichicon USV1H220MFD is a radial, polarized capacitor that has a capacitance of 22μF and a voltage rating of 50V.

Capacitance: 22μF
Voltage Rating: 50V
Size: 0.315 inches (diameter)
Lead Spacing: 0.138 inches
Tolerance: ±20%
Ripple Current: 65mA @ 120Hz and 97.5mA @ 10kHz
ESR: Low-frequency
Application: General
Maximum Height: 0.315 inches
Lifetime: 5000 hours @ 105°C
Estimated EOL Date: 2029
Manufactured in: China, Japan, and Malaysia
