Same model may have multiple batches, images only for reference.

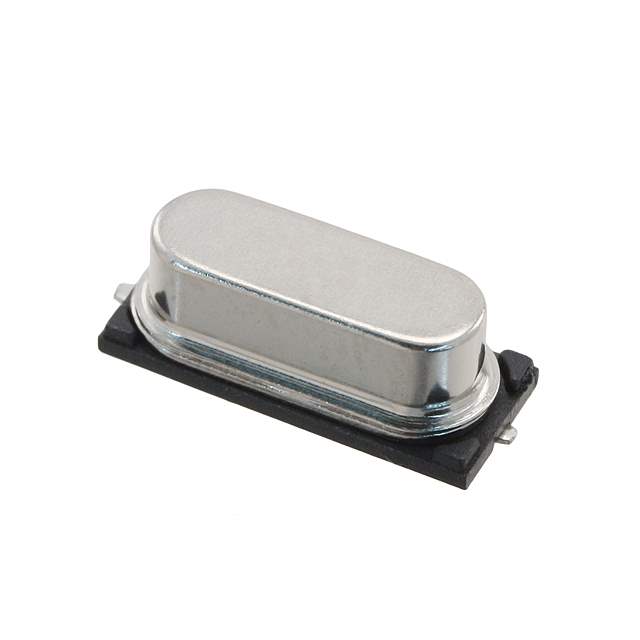

FOXSDLF/200-20/TR Real Image
Same model may have multiple batches, images only for reference.

FOXSDLF/200-20/TR

Part No FOXSDLF/200-20/TR
Manufacturer Fox Electronics
Catalog Crystals
Description CRYSTAL 20.0000MHZ 20PF SMD
Datasheet
FOXSDLF/200-20/TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Fox Electronics
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 20MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR 30 Ohm
Operating Mode Fundamental
Temperature Range - Operating -20°C to 70°C
Mounting SMD (SMT)
Dimension 0.461" L x 0.197" W (11.70mm x 5.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 204256-FOXSDLF/200-20/TR
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Clock & Timing
Ultra Librarian 3D Model Ultra Librarian FOXSDLF/200-20/TR CAD Model

Description

The FOXSDLF/200-20/TR is a MHz crystal manufactured by Fox Electronics. It is a surface-mount device (SMD) with a height of 0.177 inches (4.50mm) when seated. This crystal has a frequency of 20 MHz with a frequency stability of ±50ppm and a frequency tolerance of ±30ppm. It has an equivalent series resistance (ESR) of 30 Ohm and a load capacitance of 20pF. This crystal is used in clock and timing applications. The supply and demand status for this crystal is limited. It has a Win Source Part Number of 204256-FOXSDLF/200-20/TR.
