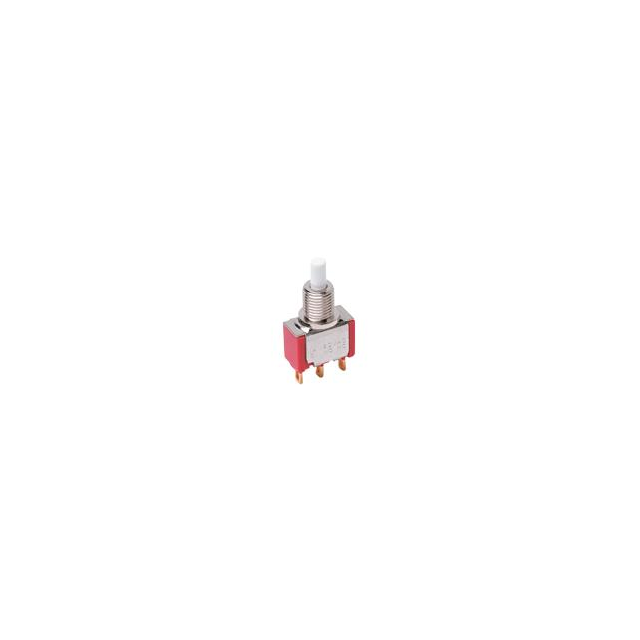

U821SD3V4GE Real Image
Same model may have multiple batches, images only for reference.

U821SD3V4GE

Part No U821SD3V4GE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 1A 120V / Pushbutton Switch DPDT Standard Through Hole
Datasheet
U821SD3V4GE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series 8020
Package Tray
Mounting Type Through Hole
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin
Features Tactile Feedback
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 60,000 Cycles
Base Product Number U821S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 2266-U821SD3V4GE,-U821SD3V4GE
Standard Package 40
Win Source Part Number 1101858-U821SD3V4GE
Ultra Librarian 3D Model Ultra Librarian U821SD3V4GE CAD Model

Description

The C&K U821SD3V4GE is a DPDT standard pushbutton switch with tactile feedback.

  • Current Rating: 1A (AC/DC)
  • Voltage Rating: 120 V AC and 28 V DC
  • Mounting Type: Through-hole
  • Termination Style: PC pin
  • Actuator Type: Round plunger
  • Actuator/Cap Color: White
  • Operating Temperature: -30°C to 65°C
  • Mechanical Life: 60,000 cycles
  • Panel Cutout Dimension: -
  • Series: 8020
  • Compliance: RoHS compliant and REACH affected
  • Alternative Parts: 8221SHCGE, 8225SHCBE, 8221SD9V3GE, and 18235WCD3
