Same model may have multiple batches, images only for reference.

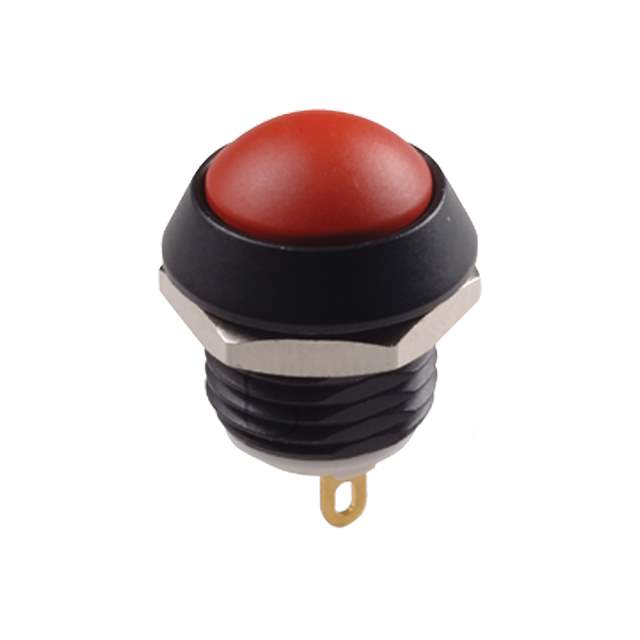

AP2N002SZBE Real Image
Same model may have multiple batches, images only for reference.

AP2N002SZBE

Part No AP2N002SZBE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.125A 125V / Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In
Datasheet
AP2N002SZBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series AP
Package Tray
Mounting Type Panel Mount, Snap-In
Type Standard, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 125mA (AC), 200mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 24 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 2 VDC
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 13.80mm Dia
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 1,000,000 Cycles
Base Product Number AP2N002
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names -AP2N002SZBE,*AP2N002SZBE
Standard Package 80
Win Source Part Number 1045363-AP2N002SZBE
Ultra Librarian 3D Model Ultra Librarian AP2N002SZBE CAD Model

Description

The Win Source Part Number 1045363-AP2N002SZBE is a switch that belongs to the pushbutton switches category.

  • Type: standard, illuminated
  • Termination Style: solder lug
  • Panel Cutout Dimension: 13.80mm Dia
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Plunger for Cap
  • Electrical Life: 1,000,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Illumination Voltage (Nominal): 2 VDC
  • Illumination Type, Color: LED, Red/Green
  • Mounting Type: panel mount, snap-in
  • Ingress Protection: IP67 - Dust tight, waterproof
  • Voltage Rating (AC): 125 V
  • Voltage Rating (DC): 24 V
  • Standard Package Quantity: 80
  • Operating Temperature Range: -40°C to 85°C
  • Alternative Parts (Cross-Reference): AP4N002SZBE, AP2D203TZBE, and AP2D202TZBE
