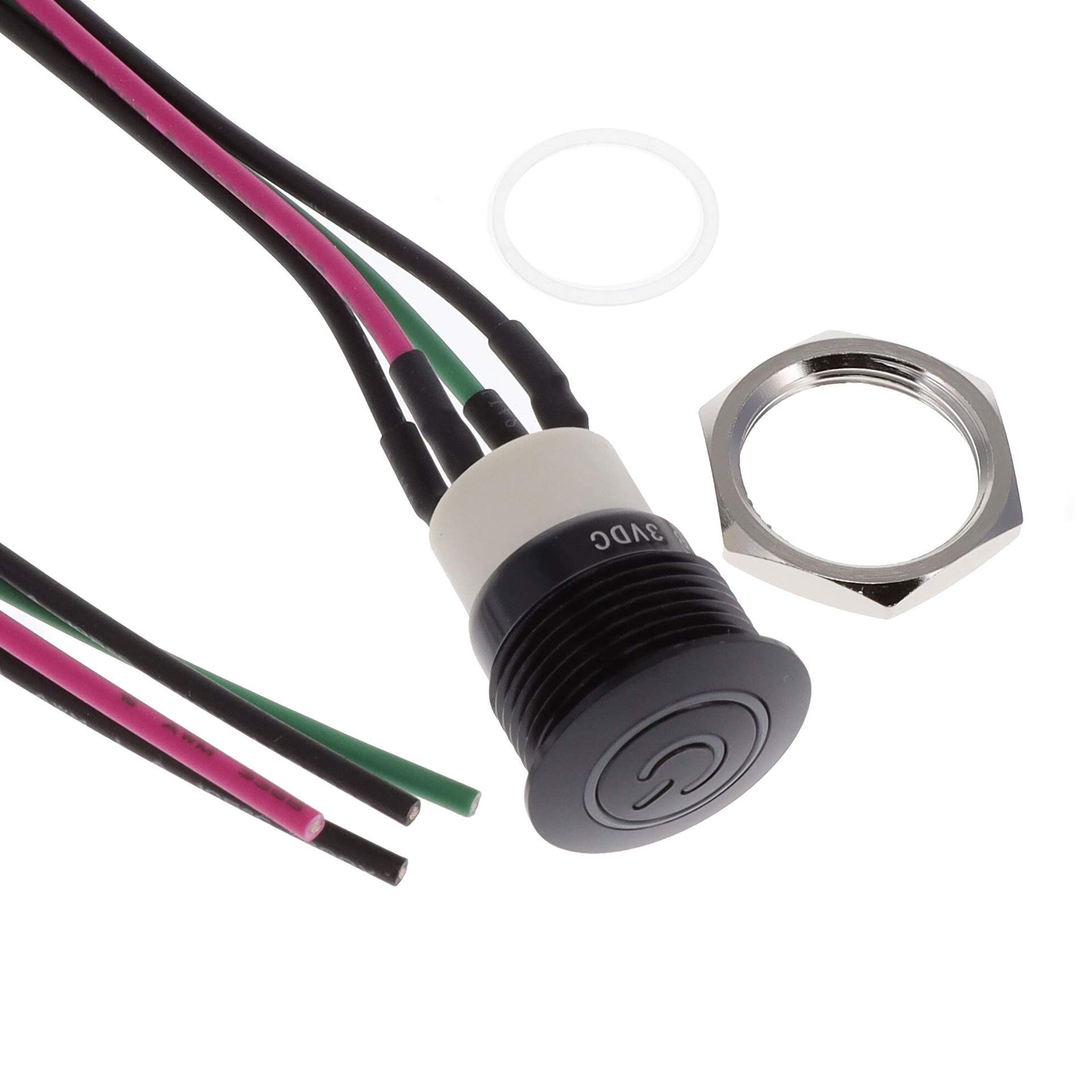

PVA6LRPW1141 Real Image
Same model may have multiple batches, images only for reference.

PVA6LRPW1141

Part No PVA6LRPW1141
Manufacturer E-Switch
Catalog Pushbutton Switches
Description LATCHING ANTI-VANDAL - 16MM / Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr E-Switch
Series PVA6L
Package Bulk
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPST
Switch Function Off-On
Current Rating (Amps) 2A (DC)
Voltage Rating - DC 36 V
Actuator Type Round, Button, Domed
Actuator Marking Power Symbol
Color - Actuator/Cap Black
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 2.8 ~ 3.7 VDC
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 16.00mm Dia
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 100,000 Cycles
Electrical Life 100,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names -141-PVA6LRPW1141-ND,141-PVA6LRPW1141,-141-PVA6LRPW1141,-1151-PVA6LRPW1141
Standard Package 20
Win Source Part Number 996026-PVA6LRPW1141
Ultra Librarian 3D Model Ultra Librarian PVA6LRPW1141 CAD Model

Description

The E-Switch PVA6LRPW1141 is an anti-vandal switch that is illuminated and has wire leads.

  • Ingress Protection: IP67
  • Voltage Rating: 36V DC
  • Panel Cutout Dimension: 16.00mm dia
  • Standard Package: 20 units
  • Switch Function: SPST, off-on
  • Actuator Type: Round, button, domed
  • Actuator Marking: Power symbol
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 100,000 cycles
  • Operating Temperature: -20°C to 70°C
  • Current Rating: 2A (DC)
  • Mounting Type: Panel mount
  • Mounting: Front
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (unlimited)
