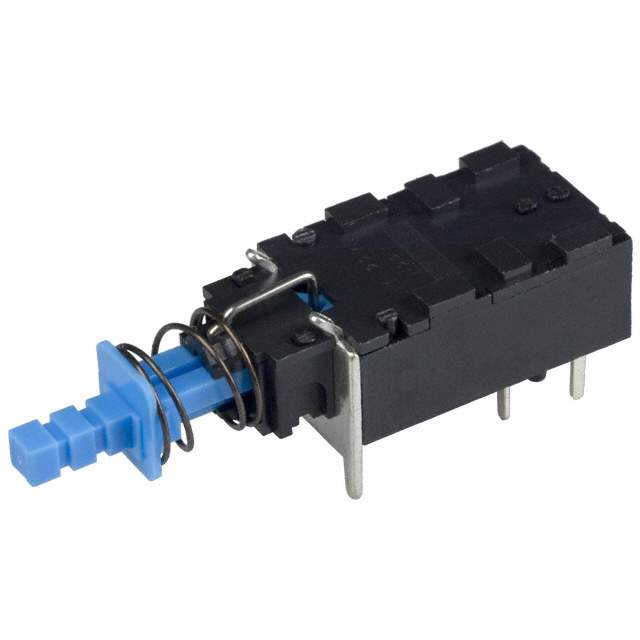

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Series P227
Packaging Bulk
Type Standard
Circuit DPST
Switch Function Off-On
Current Rating 7A (AC)
Voltage Rating - AC 125V
Actuator Type Plunger for Cap
Color - Actuator/Cap Blue
Mounting Through Hole, Right Angle
Termination Style PC Pin
Operating Temperature Range -20°C ~ 85°C
Electrical Life 6,000 Cycles
Win Source Part Number 791122-P227EE1CXC
Popularity Medium
Supply and Demand Status Limited
Family Name P227
Introduction Date September 02, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian P227EE1CXC CAD Model

Description

The P227 series DPST standard switch from E-Switch is an ideal choice for various applications.

  • Current Rating: 7A (AC)
  • Voltage Rating: 125V (AC)
  • Operating Temperature: -20°C to 85°C
  • Actuator Type: Plunger for Cap
  • Actuator/Cap Color: Blue
  • Electrical Life: 6,000 Cycles
  • Mounting Type: Through Hole, Right Angle
  • Switch Function: Off-On
  • Popularity: Medium
  • EOL Date: Obsolete/End of Life
