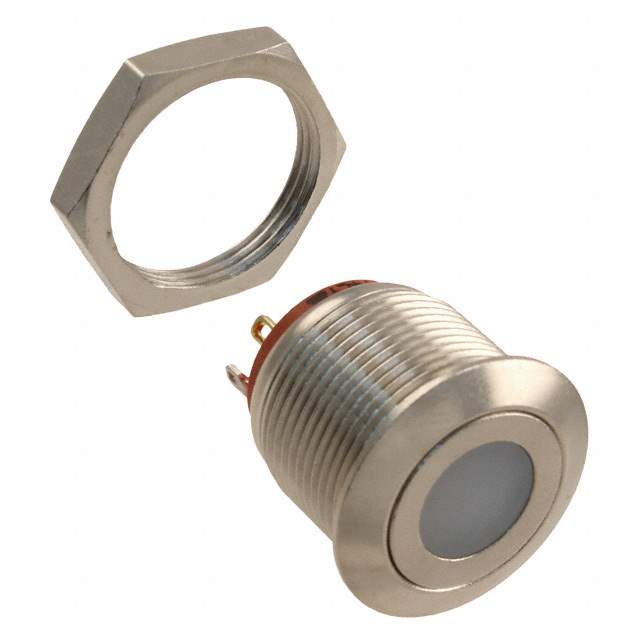

AV09C7L3D2006 Real Image
Same model may have multiple batches, images only for reference.

AV09C7L3D2006

Part No AV09C7L3D2006
Manufacturer Apem Inc.
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.05A 24V / Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr APEM Inc.
Series AV
Package Bulk
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 50mA (DC)
Voltage Rating - DC 24 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 2 VDC
Termination Style Solder Lug
Ingress Protection IP54 - Dust Protected, Water Resistant
Panel Cutout Dimensions Circular - 19.20mm Dia
Temperature Range - Operating -30°C ~ 70°C
Mechanical Life 100,000 Cycles
Electrical Life 1,000,000 Cycles
Base Product Number AV09C7L3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 679-1077
Standard Package 20
Win Source Part Number 1054654-AV09C7L3D2006
Ultra Librarian 3D Model Ultra Librarian AV09C7L3D2006 CAD Model

Description

The APEM Inc. AV09C7L3D2006 is an anti-vandal, illuminated pushbutton switch that is perfect for applications where durability and protection against dust and water are important.

  • Panel Cutout: 19.20mm Dia
  • Circuit: SPST-NO
  • Actuator Type: Round, Button, Flush
  • Illumination Type: LED, Red
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 1,000,000 cycles
  • Operating Temperature Range: -30°C ~ 70°C
