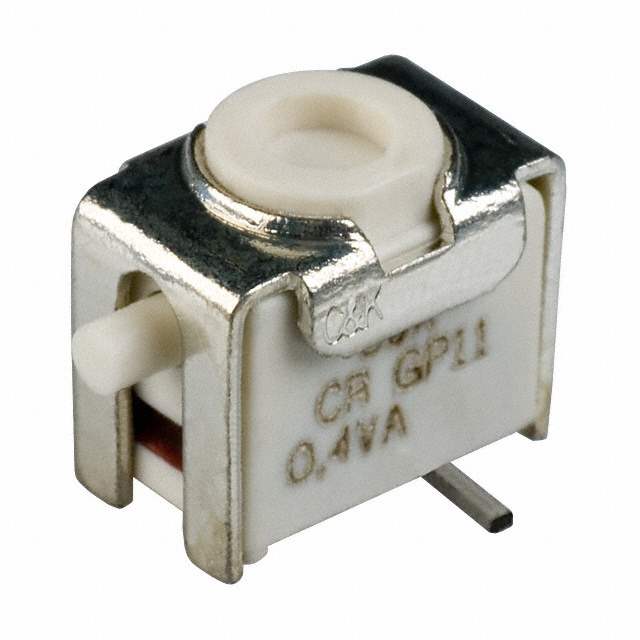

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Reel - TR
Status Active
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Round, Plunger
Color - Actuator/Cap White
Mounting Surface Mount, Right Angle, Vertical
Termination Style Gull Wing
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C to 85°C
Mechanical Life 40,000 Cycles
Electrical Life 40,000 Cycles
Win Source Part Number 128328-GP11MSV1BE
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian GP11MSV1BE CAD Model

Description

The GP11MSV1BE by C&K Components is a round plunger switch that is epoxy-sealed to protect its terminals. It is a standard switch that operates at a current rating of 0.4VA (AC/DC) and has an ingress protection rating of IP57. The switch has a voltage rating of 20V (AC/DC) and comes in a surface mount, right angle, and vertical mounting style. The GP11MSV1BE is a SPST-NO circuit switch that functions as an off-mom switch. It has a mechanical life of 40,000 cycles and an electrical life of 40,000 cycles. The switch is highly suitable for power management and industrial applications. The GP11MSV1BE operates within a temperature range of -30°C to 85°C.
