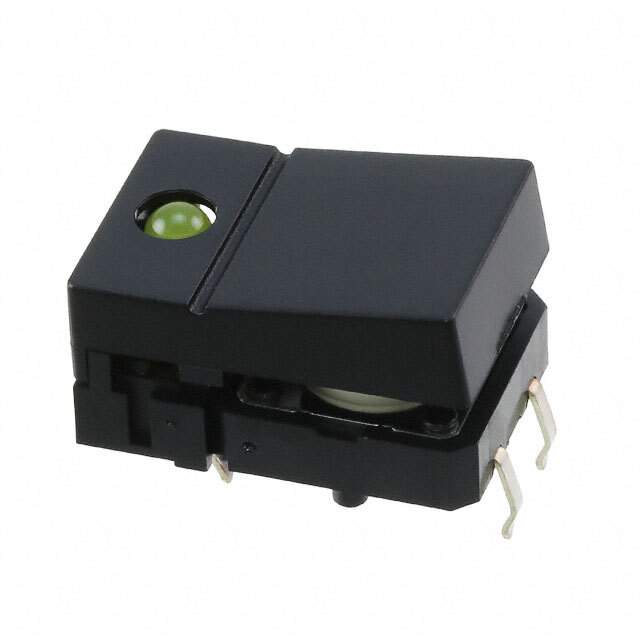

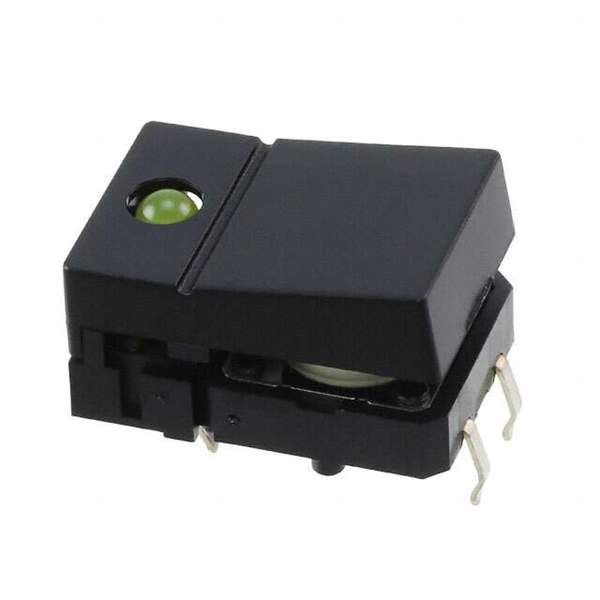

B3J-3400 Real Image
Same model may have multiple batches, images only for reference.

B3J-3400

Part No B3J-3400
Manufacturer Omron
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.05A 24V / Pushbutton Switch SPST-NO Keyswitch, Illuminated Through Hole
Datasheet
B3J-3400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr Omron Electronics Inc-EMC Div
Series B3J
Package Bulk
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 50mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Blue
Illumination Type, Color LED, Yellow
Illumination Voltage (Nominal) 2 VDC
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 3,000,000 Cycles
Electrical Life 3,000,000 Cycles
Base Product Number B3J
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Other Names B3J-3400-ND,B3J3400,Z12198
Standard Package 300
Win Source Part Number 996738-B3J-3400
Ultra Librarian 3D Model Ultra Librarian B3J-3400 CAD Model

Description

The B3J series illuminated keyswitch from Omron Electronics Inc-EMC Div is an ideal solution for a wide range of applications.

  • Actuator Type: Square Button
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Electrical Life: 3,000,000 cycles
  • Mechanical Life: 3,000,000 cycles
  • Illumination Type: LED
  • Illumination Voltage: 2 VDC
  • Actuator/Cap Color: Blue
  • Illumination Color: Yellow
  • Mounting Type: Through Hole
  • Temperature Range: -25°C to 70°C
  • Current Rating: 50mA (DC)
  • Voltage Rating: 24V (DC)
  • Packaging: Bulk
  • Standard Package: 300
