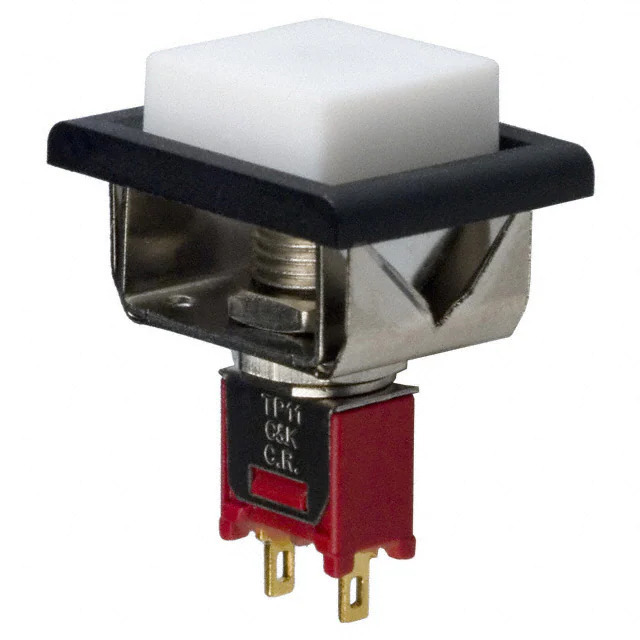

TP11J81ZBE12 C&K Components
Same model may have multiple batches, images only for reference.

TP11J81ZBE12

Part No TP11J81ZBE12
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 20V
Datasheet
TP11J81ZBE12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series TP
Package Tray
Product Status Active
Mounting Type Panel Mount, Snap-In
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Ingress Protection -
Features Sealed
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life -
Electrical Life 60,000 Cycles
Base Product Number TP11J
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376051-TP11J81ZBE12
Ultra Librarian 3D Model Ultra Librarian TP11J81ZBE12 CAD Model

Description

The TP11J81ZBE12 is a pushbutton switch from the TP series manufactured by C&K.

  • Installation: Panel mount
  • Mounting Type: Snap-in
  • Circuit: SPST-NO
  • Current Rating: 0.4VA for both AC and DC
  • Actuator Type: Square, button
  • Actuator/Cap Color: White
  • Termination Style: Solder lug
  • Panel Cutout: Rectangular 15.24mm x 12.70mm
  • Voltage Rating: 20V for both AC and DC
  • Temperature Range: -30°C to 85°C
  • Sealed: Yes
  • REACH: Unaffected
  • Electrical Life: 60,000 cycles
