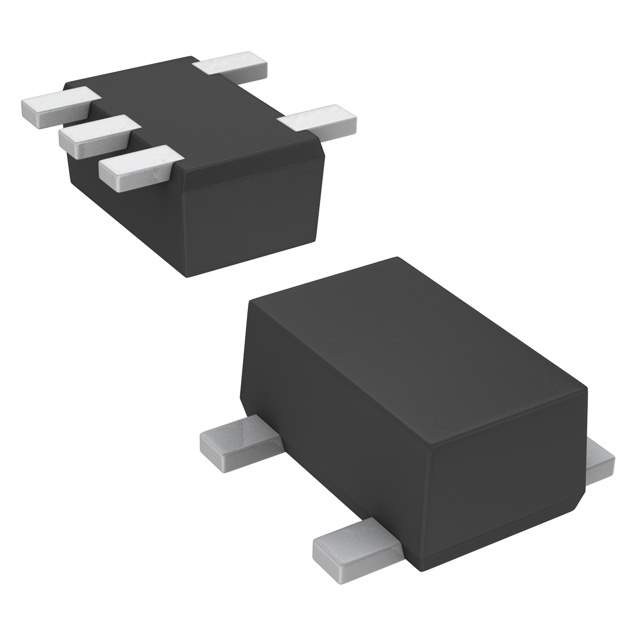

MAZM120HGL Real Image
Same model may have multiple batches, images only for reference.

MAZM120HGL

Part No MAZM120HGL
Manufacturer Panasonic
Catalog Diodes - Zener - Arrays
Description DIODE ZENER ARRAY 12V SSMINI5
Datasheet
MAZM120HGL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Configuration 2 Pair Common Anode
Voltage - Zener (Nom) (Vz) 12V
Maximum Power Dissipation 150mW
Impedance (Max) (Zzt) 30 Ohm
Current - Reverse Leakage @ Vr 50nA @ 9V
Mounting SMD (SMT)
Case / Package SSMini5-F3
Win Source Part Number 111440-MAZM120HGL
Ultra Librarian 3D Model Ultra Librarian MAZM120HGL CAD Model

Description

The Panasonic Electronic Components 111440-MAZM120HGL is a 2 pair common anode configuration diode with a maximum power dissipation of 150mW.

  • Configuration: 2 pair common anode
  • Maximum Power Dissipation: 150mW
  • Application: It is designed for use in discrete semiconductor products
  • Voltage-Zener: 12V
  • Impedance: 30 Ohm
  • Current Reverse Leakage: 50nA @ 9V
  • Mounting Type: SMD (SMT)
  • Packaging: Reel - TR
  • Tolerance: The tolerance is not specified.
  • Status: This product is now obsolete (EOL).
  • Case/Package: It comes in a SSMini5-F3 case / package.
