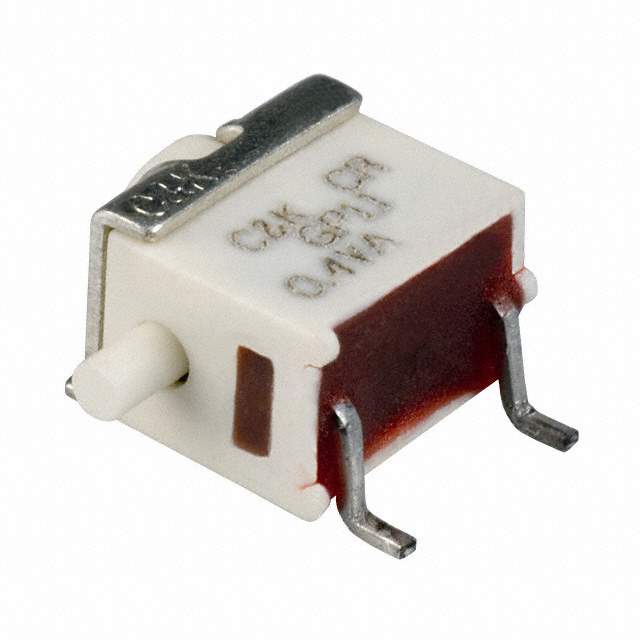

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series GP
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Mounting Type Surface Mount, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style Gull Wing
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 40,000 Cycles
Electrical Life 40,000 Cycles
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names CKN4076CT,*GP11MSAKE,*GP11MSAKE(T&R),GP11MSAKE-ND,CKN4076TR,GP11MSAKE(T&R)
Standard Package 600
Win Source Part Number 988919-GP11MSAKE
Ultra Librarian 3D Model Ultra Librarian GP11MSAKE CAD Model

Description

The C&K GP11MSAKE is a standard pushbutton switch that is designed for use in electronic devices.

  • Manufacturer: C&K
  • Actuator/Cap Color: White
  • Marking on Actuator: None
  • Mechanical Life: 40,000 cycles
  • Electrical Life: 40,000 cycles
  • Ingress Protection: IP57-dust protected, waterproof
  • Voltage Rating: AC: 20 V and DC: 20 V
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
