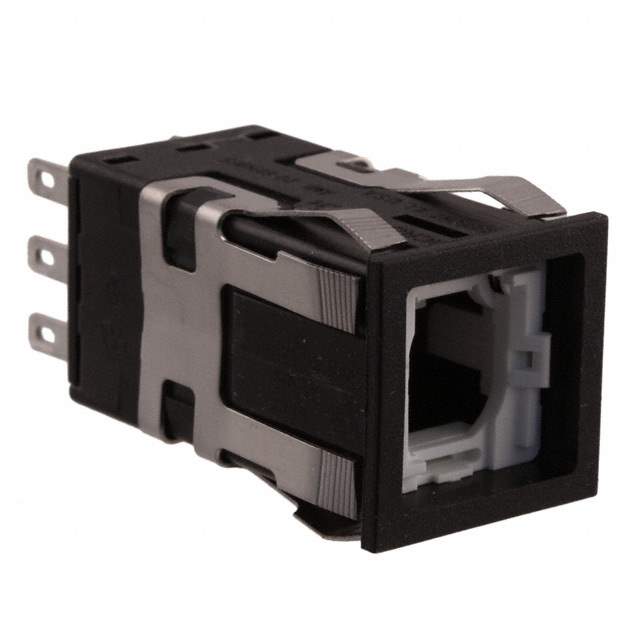

AML21BBA2AC Real Image
Same model may have multiple batches, images only for reference.

AML21BBA2AC

Part No AML21BBA2AC
Manufacturer Honeywell
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 3A 125V / Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Datasheet
AML21BBA2AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr Honeywell Sensing and Productivity Solutions
Series AML21
Package Bulk
Mounting Type Panel Mount, Snap-In
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 24 V
Actuator Type Square, Button (Not Included)
Actuator Marking No Marking
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions Square - 19.05mm x 19.05mm
Mechanical Life 25,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number AML21
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names 2266-AML21BBA2AC,480-4397,AML21BBA2AC-ND
Standard Package 1
Win Source Part Number 1079031-AML21BBA2AC
Ultra Librarian 3D Model Ultra Librarian AML21BBA2AC CAD Model

Description

The AML21BBA2AC switch from Honeywell Sensing and Productivity Solutions has a DPDT circuit and an on-mom switch function.

  • Actuator: square, button type
  • Mounting Type: panel mount, snap-in
  • Termination Style: solder and quick connect - 0.110" (2.8mm)
  • Voltage Rating: 125 V (AC) and 24 V (DC)
  • Panel Cutout Dimensions: square - 19.05mm x 19.05mm
  • Mechanical Life: 25,000 cycles
