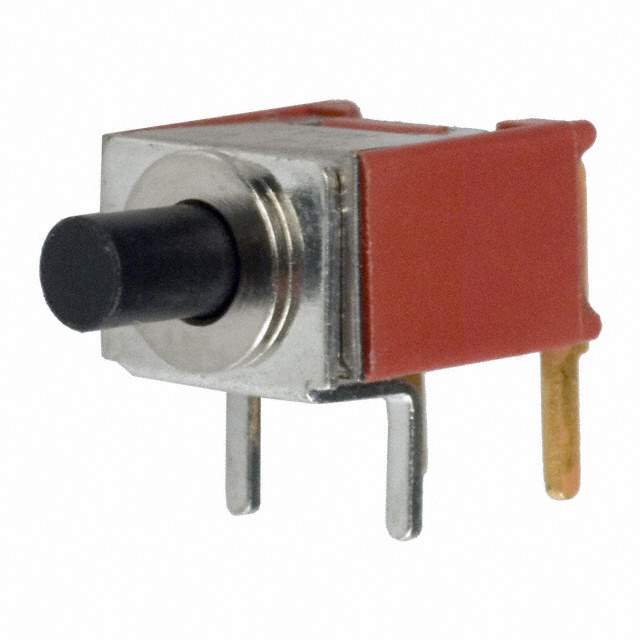

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer C&K
Packaging Bulk
Mounting Style Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Round, Plunger
Color - Actuator/Cap Black
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 60,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808988-TP11MS9ABE
Ultra Librarian 3D Model Ultra Librarian TP11MS9ABE CAD Model

Description

The C&K 808988-TP11MS9ABE is a standard type switch with epoxy sealed terminals.

  • Voltage Rating: 20V AC/DC
  • Circuit: SPST-NO
  • Switch Function: off-mom
  • Actuator Type: round, plunger
  • Electrical Life: 60,000 cycles
  • Temperature Range: -30°C to 85°C
  • Actuator/Cap Color: black
  • Mounting: through hole, right angle
  • Termination Style: PC pin
  • Supply and Demand Status: limited
