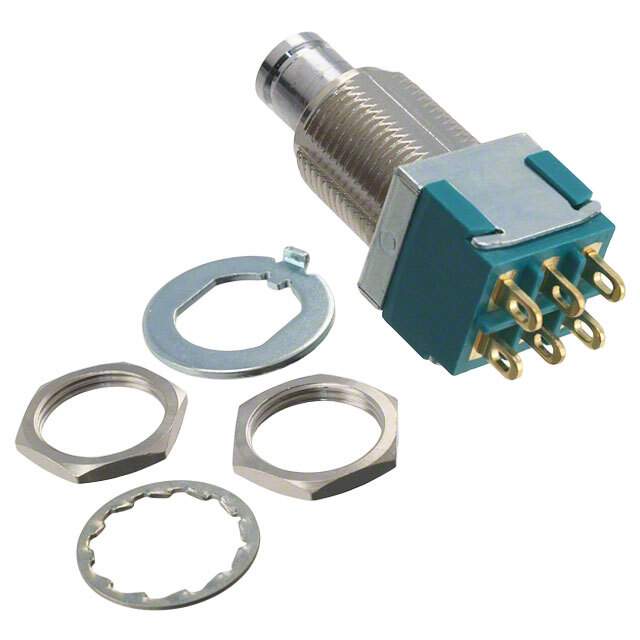

MPG206R Real Image
Same model may have multiple batches, images only for reference.

MPG206R

Part No MPG206R
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 6A 125V
Datasheet
MPG206R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Status Active
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating 6A (AC), 4A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 28V
Actuator Type Round, Button
Color - Actuator/Cap Black
Mounting Panel Mount, Rear
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 11.80mm Dia
Temperature Range - Operating -20°C to 80°C
Electrical Life 50,000 Cycles
Win Source Part Number 1087713-MPG206R
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian MPG206R CAD Model

Description

The TE Connectivity ALCOSWITCH Switches MPG206R is a standard type switch that has a DPDT circuit and is designed for panel mounting.

  • Circuit: DPDT
  • Mounting Type: Panel Mount
  • Current Rating (AC): 6A (AC)
  • Current Rating (DC): 4A (DC)
  • Voltage Rating (AC): 125V (AC)
  • Voltage Rating (DC): 28V (DC)
