Same model may have multiple batches, images only for reference.

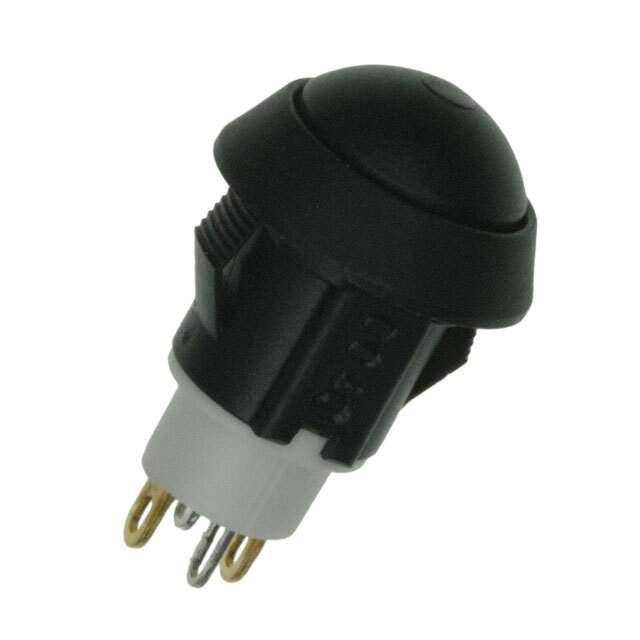

AP4D203SZBE Real Image
Same model may have multiple batches, images only for reference.

AP4D203SZBE

Part No AP4D203SZBE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.125A 125V / Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In
Datasheet
AP4D203SZBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series AP
Package Tray
Mounting Type Panel Mount, Snap-In
Type Standard, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 125mA (AC), 200mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 24 V
Actuator Type Round, Button, Domed
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 2 VDC
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 13.80mm Dia
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 1,000,000 Cycles
Base Product Number AP4D203
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names *AP4D203SZBE,CKN9965,2266-AP4D203SZBE
Standard Package 80
Win Source Part Number 960159-AP4D203SZBE
Ultra Librarian 3D Model Ultra Librarian AP4D203SZBE CAD Model

Description

The C&K 960159-AP4D203SZBE pushbutton switch has a circuit configuration of SPST-NO.

  • Manufacturer: C&K
  • Circuit Configuration: SPST-NO
  • Panel Cutout Dimension: circular - 13.80mm Dia
  • Voltage Rating for AC: 125V
  • Voltage Rating for DC: 24V
  • Illumination Voltage (Nominal): 2VDC
  • Illumination Type, Color: LED, red
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 1,000,000 cycles
  • Ingress Protection: IP67 - Dust Tight, Waterproof
