Same model may have multiple batches, images only for reference.

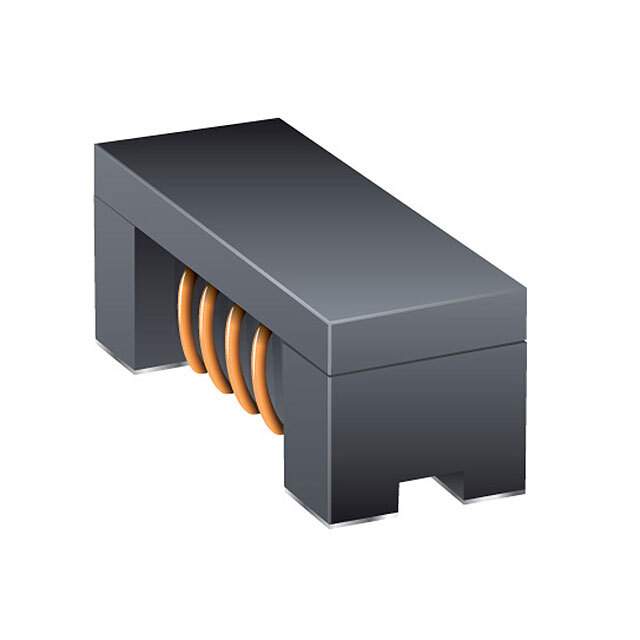

SRF3216A-121Y Real Image
Same model may have multiple batches, images only for reference.

SRF3216A-121Y

Part No SRF3216A-121Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF3216A-121Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF3216A
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 120 Ohms @ 100 MHz
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) 0.087" (2.20mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF3216A
Other Names SRF3216A-121YDKR,SRF3216A-121YTR,SRF3216A-121YCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277118-SRF3216A-121Y
Ultra Librarian 3D Model Ultra Librarian SRF3216A-121Y CAD Model

Description

The SRF3216A-121Y is a Bourns Inc. common mode choke that is designed to provide a high-performance solution for various electronic circuits.

  • Package: Horizontal, 4 PC pad
  • Voltage Rating: 50V
  • Application: Signal Line Filters
  • Impedance: 120 Ohms @ 100 MHz
