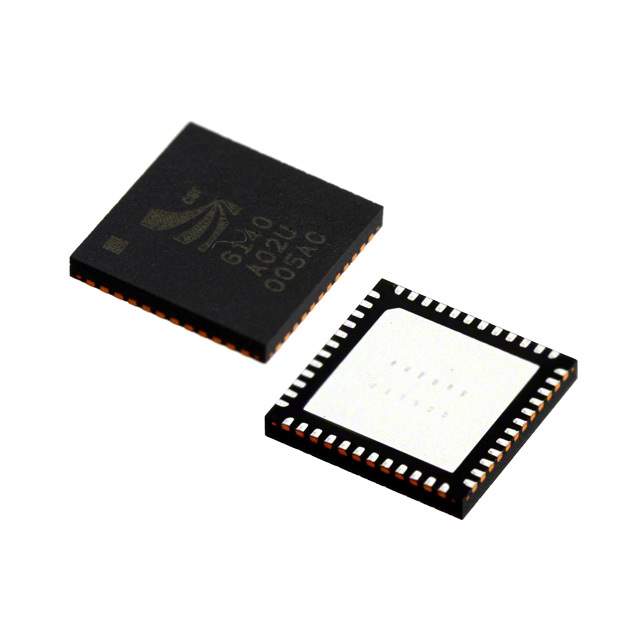

BC6140A02-IQQB-R Real Image
Same model may have multiple batches, images only for reference.

BC6140A02-IQQB-R

Part No BC6140A02-IQQB-R
Manufacturer Qualcomm
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 48VQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer QUALCOMM
Packaging Reel
Part Status Obsolete (End Of Life)
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v3.0
Frequency 2.4GHz
Data Rate (Maximum) 3Mbps
Power - Output 8.5dBm
Sensitivity -90dBm
Memory Size 48kB RAM
Serial Interfaces I2C, SPI, UART
Manufacturer Package 48-VQFN
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803920-BC6140A02-IQQB-R
Ultra Librarian 3D Model Ultra Librarian BC6140A02-IQQB-R CAD Model

Description

The QUALCOMM TxRx + MCU electronic component is a Bluetooth v3.0 protocol type of product.

  • Frequency: 2.4GHz
  • Memory Size: 48kB RAM
  • Part Status: obsolete (End Of Life)
  • Manufacturer Package: 48-VQFN
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 3 (168 Hours)
