Same model may have multiple batches, images only for reference.

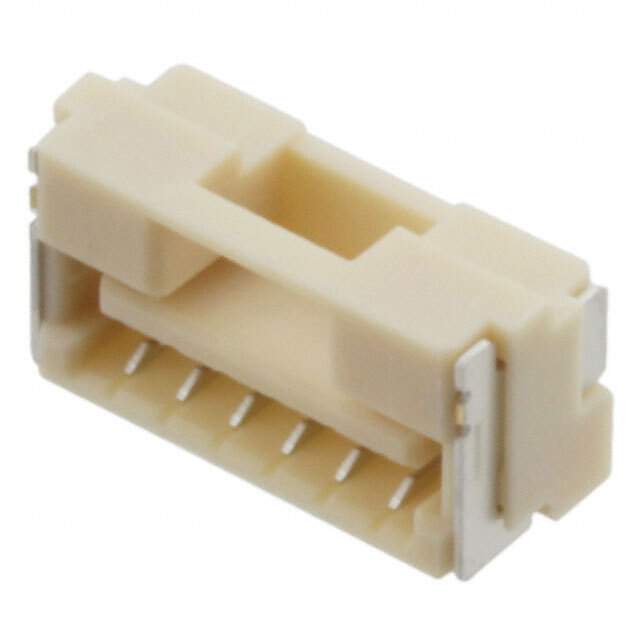

5023860670 Real Image
Same model may have multiple batches, images only for reference.

5023860670

Part No 5023860670
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 1.25 W/B SGL R/A REC ASSY 6CKT
Datasheet
5023860670 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.049" (1.25mm)
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Insulation Color Natural
Insulation Height 0.215" (5.45mm)
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Solder Retention
Current Rating 1A
Voltage Rating 50V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 119964-5023860670
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5023860670 CAD Model

Description

5023860670 Electronic Component

Built with cutting-edge technology, the 5023860670 is tailored for demanding electronic applications. This component provides superior performance and improved functionality for modern devices.

  • Enhanced signal processing capabilities
  • Low power consumption
  • Wide operating temperature range

Applications:

  • Telecommunications Infrastructure
  • Wireless Networking Devices
  • Advanced Computing Systems

Features and Benefits:

  • Efficient Signal Handling: Ensures high fidelity in data transmission.
  • Durable Construction: Suitable for extended use in challenging environments.
