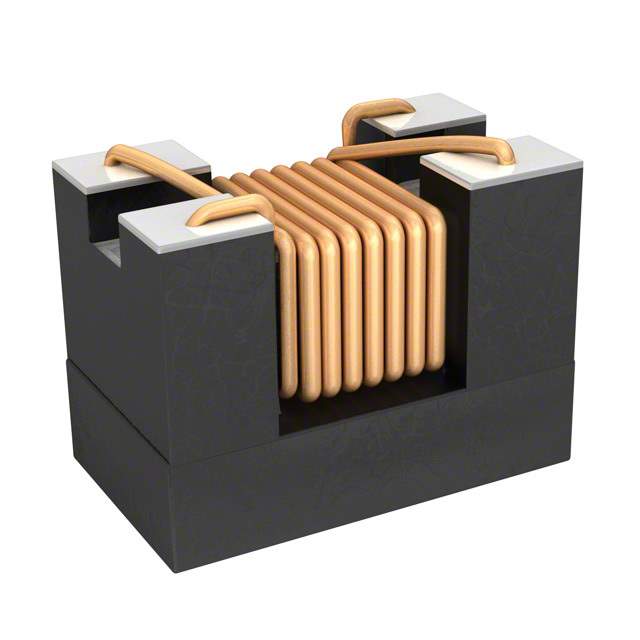

744233670 Real Image
Same model may have multiple batches, images only for reference.

744233670

Part No 744233670
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 320MA 2LN 67OHM SMD AEC-Q200
Datasheet
744233670 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CNSW HF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 67 Ohms @ 100 MHz
Current Rating (Max) 320mA
DC Resistance (DCR) (Max) 240mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Ratings AEC-Q200
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 743952-744233670
Ultra Librarian 3D Model Ultra Librarian 744233670 CAD Model

Description

The WE-CNSW HF series is a common mode choke designed for signal line filtering.

  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Maximum Height: 0.055" (1.40mm)
  • Voltage Rating: 50V (DC)
  • Current Rating: 320mA
  • Impedance: 67 Ohms @ 100 MHz
  • Maximum DC Resistance (DCR): 240mOhm
  • Package: Horizontal, 4 PC pad
  • Temperature Range: -40°C to 105°C
  • Standards: AEC-Q200
  • Manufacturer: Wurth Electronics Inc.
