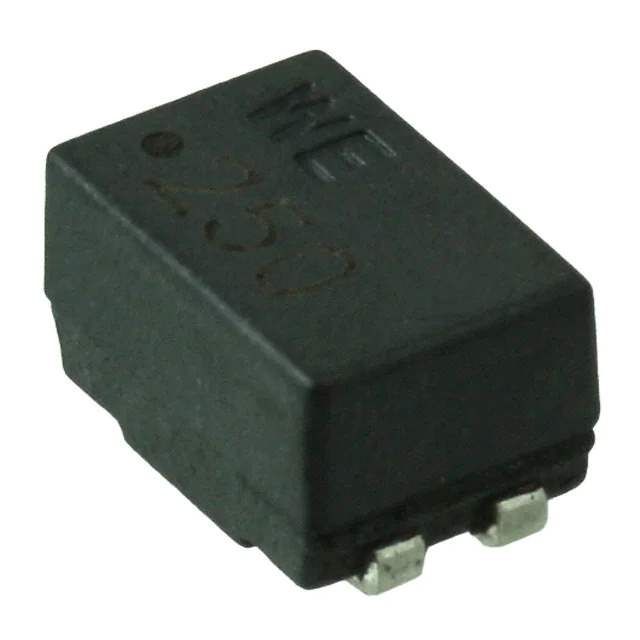

744228 Real Image
Same model may have multiple batches, images only for reference.

744228

Part No 744228
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 25UH 1A 2LN 2.8K OHM SMD
Datasheet
744228 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 2.8 kOhms @ 45 MHz
Inductance @ Frequency 25 µH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547229-744228
Ultra Librarian 3D Model Ultra Librarian 744228 CAD Model

Description

The WE-SL2 series is a common mode choke designed for power and signal line filtering.

  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Maximum Height: 0.209" (5.30mm)
  • Suitable for: surface mount applications
  • Voltage Rating: 80V DC
  • Current Rating: 1A
  • Impedance @ 45 MHz: 2.8 kOhms
  • Inductance @ 1 kHz: 25 µH
  • DC Resistance (DCR): 120mOhm maximum
  • Packaging: tape & reel
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Series: WE-SL2 series
  • Status: currently active
