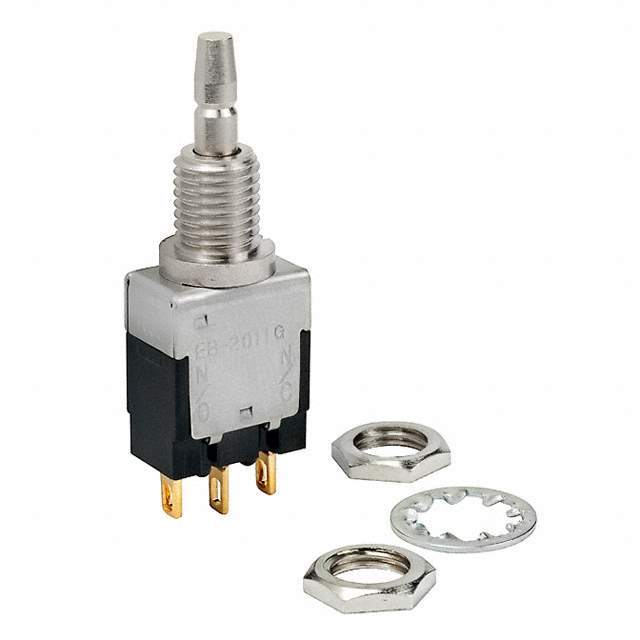

EB2011G Real Image
Same model may have multiple batches, images only for reference.

EB2011G

Part No EB2011G
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V / Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
Datasheet
EB2011G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Series EB
Packaging Bulk
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 28V
Voltage Rating - DC 28V
Actuator Type Plunger for Cap
Mounting Panel Mount, Rear
Termination Style Solder Lug
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 6.35mm Dia
Operating Temperature Range -10°C ~ 70°C
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Win Source Part Number 773638-EB2011G
Popularity Medium
Supply and Demand Status Limited
Family Name EB
Introduction Date April 01, 2006
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EB2011G CAD Model

Description

The NKK Switches EB series is a standard type of switch with a SPDT circuit and on-mom switch function, suitable for panel mounting on the rear.

  • Actuator Type: Plunger for Cap
  • Operating Temperature Range: -10°C to 70°C
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 28V (AC/DC)
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 50,000 cycles
  • Terminals: Epoxy-sealed
  • Panel Cutout: 6.35mm Diameter
  • Country of Manufacture: Philippines
  • Estimated EOL Date: 2027
