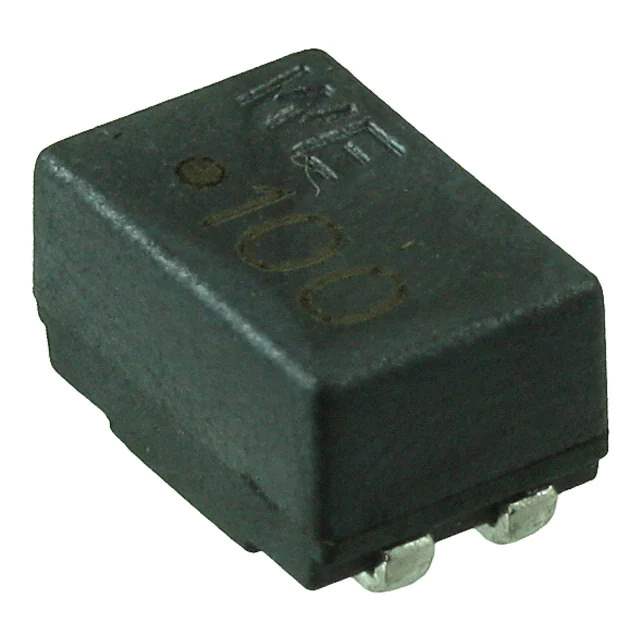

744226 Real Image
Same model may have multiple batches, images only for reference.

744226

Part No 744226
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 10UH 1.6A 2LN 920 OHM SMD
Datasheet
744226 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 920 Ohms @ 100 MHz
Inductance @ Frequency 10 µH @ 1 kHz
Current Rating (Max) 1.6A
DC Resistance (DCR) (Max) 80mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.205" (5.20mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547226-744226
Ultra Librarian 3D Model Ultra Librarian 744226 CAD Model

Description

The WE-SL2 series from Wurth Electronics Inc. is a reliable choice for common mode chokes in electronic circuits. This particular component, with a part number of 547226-744226, is a signal line filter with a compact size of 0.362" L x 0.236" W (9.20mm x 6.00mm).

  • Series: WE-SL2
  • Part Number: 547226-744226
  • Type: Common Mode Choke / Signal Line Filter
  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Maximum Current Rating: 1.6A
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Temperature Range: -40°C to 125°C
  • Impedance: 920 Ohms @ 100 MHz
  • Voltage Rating: 80V
  • DC Resistance (DCR): 80mOhm
